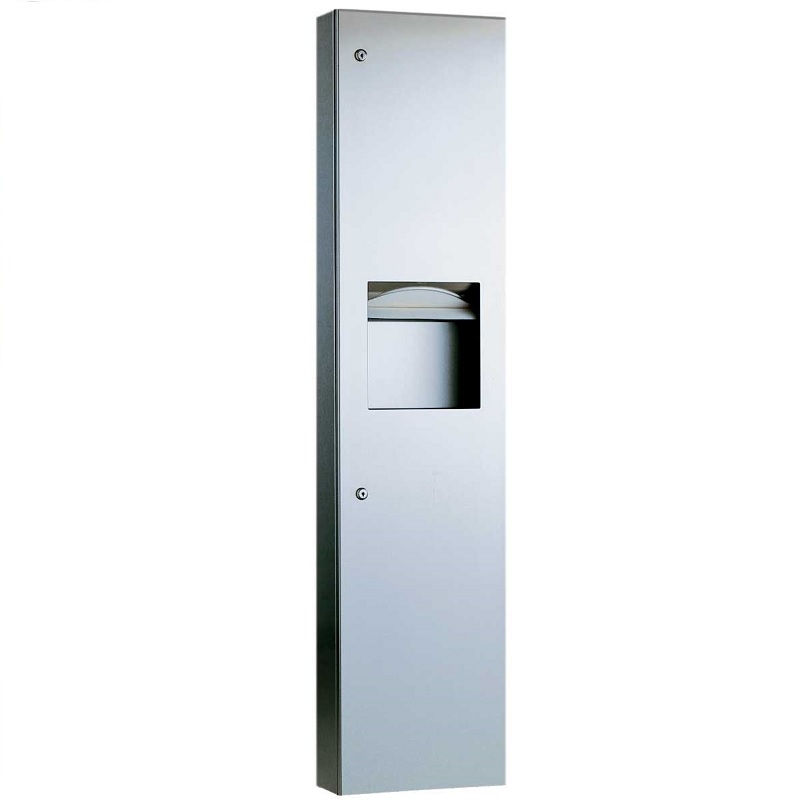

Bobrick Trimline Semi Recessed Paper Towel Dispenser and Waste Bin 24L

Bobrick Trimline 24L Semi Recessed Paper Towel Dispenser and Waste Bin

The semi-recessed paper towel dispenser and waste receptacle unit is constructed from heavy-gauge, 18-8, type-304 stainless steel with an all-welded design for enhanced durability and a refined appearance. The door, made from 18-gauge (1.2mm) type-304 stainless steel, features a satin finish and a 9/16" (14mm) 90° return for added rigidity. It is securely attached to the cabinet via a concealed, full-length stainless steel piano hinge and is equipped with a stainless steel cable door-swing limiter to prevent overextension and damage. Two tumbler locks, keyed to match other Bobrick washroom accessories, are integrated flush with the door for a sleek, tamper-resistant look. The unit also includes a skirt made from 22-gauge (0.8mm) type-304 stainless steel with a matching satin finish.

The paper towel dispenser, also fabricated from 22-gauge (0.8mm) type-304 stainless steel with a satin finish, features a rounded towel tray with a hemmed opening to allow smooth, tear-free dispensing. It has a large capacity, capable of holding 600 C-fold, 800 multifold, or 1100 singlefold paper towels. An optional Bobrick TowelMate® accessory (Model No. 3803-130) is available to improve dispensing efficiency. This add-on ensures towels are dispensed one at a time, reducing waste and preventing bulging, sagging, or accidental falls through the opening, thanks to a nylon rod and a 90° return towel guide.

The waste container is a removable, leak-proof, rigid molded plastic bin with a capacity of 6.3 gallons (24 litres), making it ideal for high-traffic restrooms. The unit is designed for easy servicing - simply unlock the door with the provided key and remove the container. The cable door-swing limiter helps safeguard adjacent fixtures and walls during access.

Installation requires a framed rough wall opening measuring 11-1/2" wide by 53-5/8" high (292 x 1362 mm) and a minimum recessed depth of 3-3/4" (95 mm). Installers must ensure clearance for structural elements behind the wall and use shims and #8 x 1-1/4" (4.2 x 32 mm) sheet-metal screws (not included) at designated points. If the unit extends above a wainscot, an aluminum channel or similar filler should be used to bridge any visible gap. In summary, this unit delivers robust construction, aesthetic appeal, and operational versatility, meeting the practical needs of commercial restrooms.

• Installation Dimensions (mm): H1362mm x W292mm x D95mm
• Material: Type 304 Stainless Steel
• Paper Towels: 600 C-Fold, 800 Multifold or 1100 Singlefold
• Removable Waste Receptacle - 24 Litre Capacity
• ADA Compliant
• Dual Tumbler Locks
• Secure Door Mechanism - Piano Hinge
• Satin Finish
• Optional Towelmate - See Related Products
• Ideal for Commercial Washrooms
• GTIN/EAN: 0716954002013
