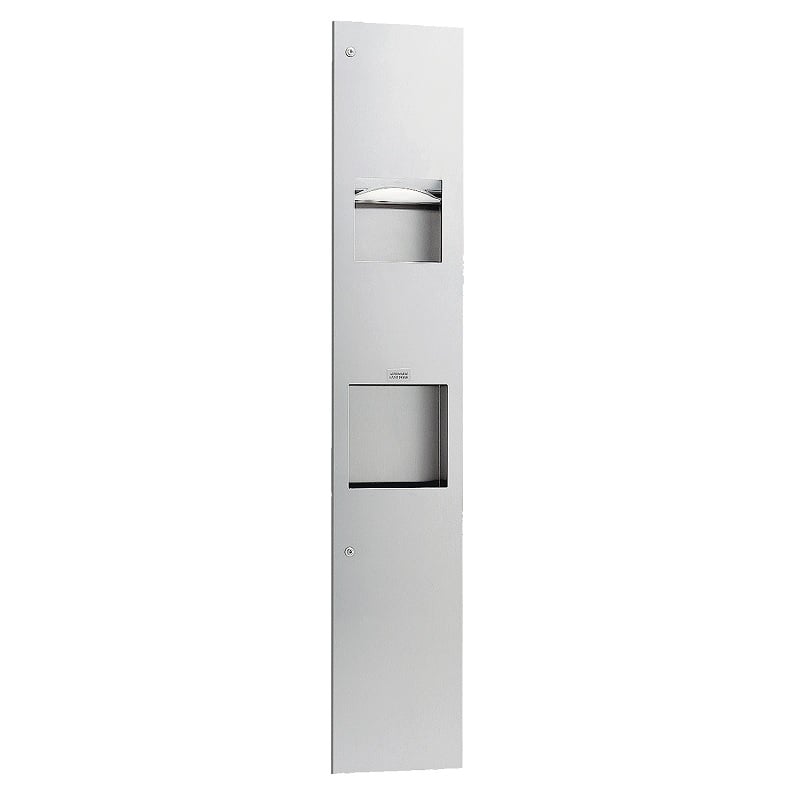

Bobrick Trimline Paper Towel Dispenser, Automatic Hand Dryer and Waste Bin Unit
- 450 C-Fold, 600 Multifold and 850 Single-Fold Paper Towels
- 1.5-1.7kW Power
- 12.5L Bin Capacity
Paper Towel Dispenser, Automatic Hand Dryer and Waste Bin Unit Bobrick
The Bobrick B-38033 TrimLineSeries™ is a recessed 3-in-1 combination unit that integrates a paper towel dispenser, automatic hand dryer, and waste receptacle in a compact and efficient design, ideal for high-traffic washrooms. Constructed from durable 18-8, type-304 stainless steel, the cabinet features all-welded construction for strength and longevity. The door is fabricated from 1.2mm (18-gauge) stainless steel with a 14mm (9/16") 90° return edge to maximise rigidity.
It is mounted to the cabinet with a concealed, full-length stainless steel piano hinge and equipped with a stainless steel cable door-swing limiter and dual tumbler locks that are keyed alike to match other Bobrick washroom fixtures. The unit's paper towel dispenser is made from 0.8mm (22-gauge) stainless steel and includes a rounded, hemmed towel tray opening to dispense towels without tearing. It accommodates up to 450 C-fold, 600 multifold, or 850 singlefold paper towels.
The waste container is constructed from leak-proof, rigid moulded plastic and is removable for easy servicing, with a total capacity of 12.5 litres. An integrated stainless steel air deflector prevents the dryer airflow from interfering with the waste bin. The automatic hand dryer, suitable for international use only, operates on 220-240V AC, 7 Amps, and 1500-1700 Watts. It features a one-piece fire-retardant moulded cover in Bobrick grey (#889), secured with stainless steel screws, and includes international operating symbols on the front.
The dryer’s base and fan housing are made from fire-retardant, high-gloss grey moulded plastic, CE marked and VDE approved. A brushless external rotor motor with sealed ball bearings powers the centrifugal fan, which is dynamically balanced and delivers airflow at 90 CFM. The nickel-chrome heating element, located on the fan's inlet side, ensures uniform heat distribution and is protected by an automatic thermal overload switch.
The electronic infrared sensor automatically activates the dryer when hands are placed under the air outlet and stops when hands are removed. It includes a safety shutoff that halts operation after approximately two minutes if an object is detected across the sensor lens, and resumes normal function once the obstruction is removed. For installation, the unit requires a framed rough wall opening measuring 350mm wide by 1380mm high with a minimum recessed depth of 145mm.
- Material: Type 304 Premium Stainless Steel
- Secure Access: Steel Cable Door Limiter
- Security: Dual Tumbler Locks
- 450 C-Fold, 600 Multifold and 850 Single-Fold Paper Towels
- 1.5-1.7kW Power
- 12.5L Bin Capacity
- Touch Free Hand Dryer
- Centrifugal Fan 90 CFM
- Voltage: 220-240V
- Frequency: 50/60Hz
- Recessed Installation (mm): H1380mm x W350mm x D145mm
- GTIN/EAN: 716954000804
| Product Code | B38033 |
| Wall Opening (mm) | H1380mm x W350mm x D145mm |
| Material | Type 304 Stainless Steel |
| Finish | Satin |
| Noise Level | 70dB(A) |
| Voltage | 240V |
| Motor | 50/60Hz |
| Heating Element | Coiled Nickel Chrome |
| Recessed | Yes |
| Wattage | 1500W |
| Waste Capacity (Ltrs) | 12.5Ltrs |
| Waste Container Material | Leak Proof Rigid Moulded Plastic |
| Hinge | Full Length Piano Hinge |
| Paper Towel Dispenser Capacity | 450 C-Fold, 600 Multifold or 850 Singlefold Paper Towels |
| GTIN/EAN | 716954000804 |
What functions are included in the B-38033 unit?
The B-38033 is a 3-in-1 recessed unit that combines a paper towel dispenser, an automatic hand dryer, and a waste receptacle into one integrated fixture.
What type of paper towels does the dispenser support?
The unit is adjustable to dispense C-fold (450 capacity), multifold (600 capacity), or singlefold (850 capacity) paper towels without requiring any additional adapters.
What is the capacity of the waste receptacle?
The built-in waste container has a capacity of 12.5 litres and is made of leak-proof, rigid moulded plastic for easy servicing.
Is the hand dryer touchless?
Yes, the unit includes an automatic, no-touch hand dryer that activates via an infrared sensor and stops when hands are removed.
What is the required wall opening for installation?
The unit requires a framed rough wall opening of 350mm (13-3/4") wide, 1380mm (54-3/8") high, and a minimum recessed depth of 145mm (5-3/4").
How is the dryer powered and what are its features?
The dryer uses a brushless external rotor motor, a coiled nickel-chrome heating element, and has automatic thermal overload protection. It delivers 90 CFM airflow and includes a vandal-resistant design.
What finish and material is the unit made of?
The B-38033 is made of type-304 stainless steel with an all-welded construction and a satin finish on all exposed surfaces.
What kind of lock mechanism does the unit have?
The unit features two tumbler locks on the door, keyed alike to match other Bobrick washroom accessories.
| SKU | B38033 |
|---|---|
| GTIN | 716954000804 |
| Weight | 15.650000 |
| Warranty | 2 Years |
| Quick Code | 3698 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
