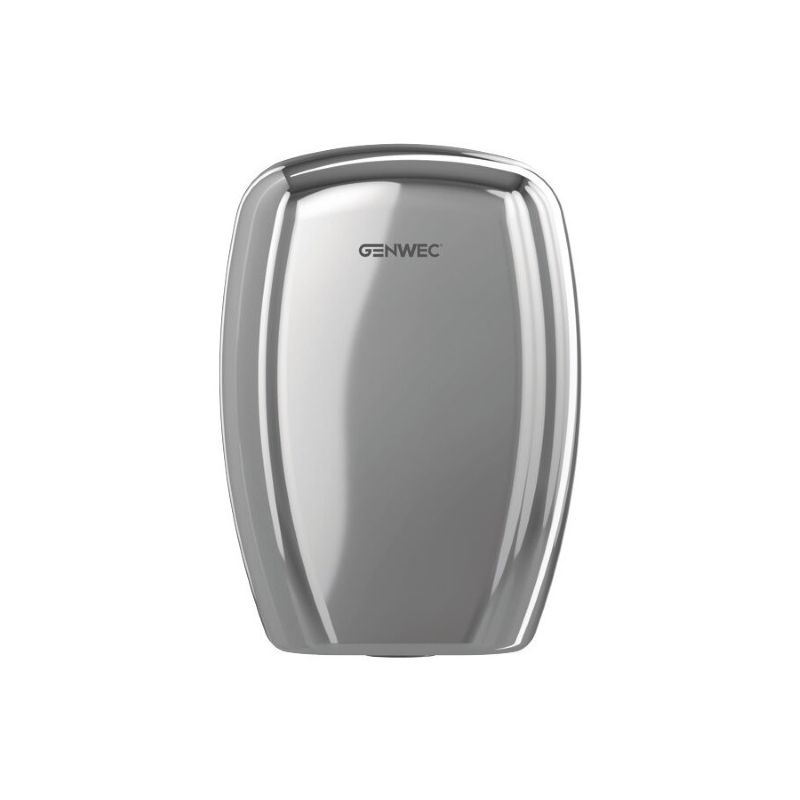

The Genwec Neo Automatic Polished Stainless Steel Hand Dryer is a sophisticated, compact, and high-performance drying solution designed for contemporary washroom environments. Combining durability with refined aesthetics, the unit features a polished AISI 304 stainless steel cover, securely fixed to a robust ABS base plate using tamper-proof screws. The base plate mounts to the wall at three points, ensuring a stable and vandal-resistant installation.

At its core, the dryer is powered by a high-pressure universal brush motor operating at 28,000 RPM (220–240V, Class F), safeguarded by a thermal cut-out to prevent overheating. It operates in tandem with a dual-plate Nickel-Chromium (NiCr) heating element, supported by a mica base and protected by dual thermal limiters for added safety. A smart electronic control system ensures energy efficiency, consuming less than 0.5W in standby mode. Automatic, touch-free operation is enabled by an adjustable infrared sensor with a detection range of 6–15 cm. The unit delivers a consistent, powerful airflow that dries hands in just 20 seconds and includes an auto shut-off function after 30 seconds if an object blocks the sensor, resuming normal operation once the obstruction is removed.

Hygiene is further supported by an integrated HEPA H13 filter located at the motor inlet, which captures 99.95% of airborne particles as small as 0.3 microns. The dryer also complies with ADA standards thanks to its slim design and provides IP24-rated protection against water ingress. With an airspeed of 250 km/h and an output temperature of 48°C, it operates quietly at just 75 dBA (measured at 2 metres) while drawing only 3.48 amps. Total power consumption is 800W, split evenly between the motor and heating element.

Dimensions (mm): H282mm x W190mm x D100mm
Total Power: 800W
Heating Element Power: 400W
Motor Power: 400W
Voltage: 220-240V
Frequency: 50-60Hz
IP Rating: IP24
Air Speed: 250km/h
Air Temperature: 48℃
Disconnection Time: 30 Seconds
Drying Time: 20 Seconds
Noise Level @ 2m: 75 dBA
RPM: 28,000
Consumption: 3,48A
Electrical Insulation: Class Ⅱ
GTIN/EAN: 8433989614678

Technical

Product Code	GW01170402
Finish	Polished Stainless Steel
Dimensions (mm)	H282mm x W190mm x P100mm
Voltage	220-240V
Frequency	50-60Hz
Air Speed	250km/h
Hepa Filter	Yes
Air Temperature	48ºC
Total Power	800W
Heating Element Power	400W
Motor Power	400W
Consumption	3.48 A
Electrical Insulation	Class Ⅱ
IP Rating	IP24
Drying Time	20 Seconds
Noise Level @ 2m	75 dBA
R/Min	28,000
Vandal Proof Disconnection	30 Seconds
Weight	3.75kg
GTIN/EAN	8433989614678

FAQs

What is the noise level during operation?

The Genwec Neo Hand Dryer operates at a noise level of 75dBA, providing a relatively quiet drying experience compared to other hand dryers in its class.

What are the dimensions and weight of the unit?

The Genwec Neo Hand Dryer measures 190mm in width, 100mm in depth, and 282mm in height, with a weight of 3.75 kg, making it compact and suitable for various restroom sizes.

What is the power rating of the Genwec Neo Polished Stainless Steel Hand Dryer?

The Genwec Neo Hand Dryer has a power rating of 800 watts, making it energy-efficient while providing effective hand drying performance.

Is the hand dryer equipped with an automatic sensor?

Yes, the Genwec Neo Hand Dryer features an infrared sensor that activates the dryer automatically when hands are placed beneath it, promoting hygiene by eliminating the need for physical contact.
