Genwec Custom Colour Horizontal Baby Changing Unit Stainless Steel
- Available in any RAL Colour
- Dimensions (mm): H500mm x W870mm x P95mm
- Image Colour Baby Pink - RAL 4010
Genwec Horizontal Baby Changing Unit Stainless Steel - Custom Colour
The Genwec Horizontal Baby Changing Unit is a premium choice for busy washroom environments, offering a blend of durability, safety, and customisable design. Constructed from robust Grade 304 stainless steel, this unit delivers long-lasting performance and a modern, professional finish. It is powder-coated in your selected RAL colour, with a choice of over 500 shades - including more than 100 fire-resistant options ensuring seamless integration with any corporate or commercial aesthetic.
Designed for horizontal, surface-mounted installation, the baby changer features a built-in safety belt for secure use. It can support a maximum weight of 50kg (approximately 7 stone), making it suitable for a wide range of users. The smooth, seamless interior surface is hygienic and easy to clean, helping to reduce germ build-up.

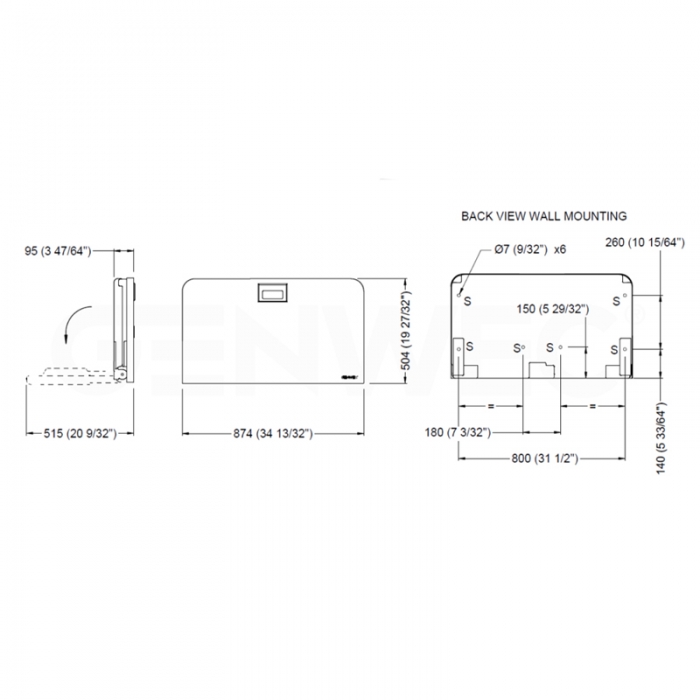

When open, the unit measures 870mm wide, 500mm high, and projects 514mm from the wall. Closed, it presents a compact profile of just 95mm, making it an excellent space-saving solution.
For optimal installation, the recommended height is 800mm (31.5 inches) from the floor to the underside, with lower fixing points at 940mm (37 inches). For ADA compliance, an installation height of 710mm (28 inches) with fixing points at 850mm (33.5 inches) is recommended. The unit shown in the reference image features the Baby Pink 4010 RAL colour finish.
- Available In Any Ral Colour On Request
- Dimensions (mm): H500mm x W870mm x P95mm
- Grade AISI 304 Stainless Steel
- Fixing Kit and Instruction Manual Supplied
- Safety Belt Provided
- Supported Weight up to 50kg
- Safety Instructions in 3 Different Languages
- Suitable for High Traffic Washroom Areas
- ADA Compliant
- Opening Projection Dimension: 514mm
- Maximum Projection: 95mm
- Bed is Secured with Heavy Duty Steel Hinges
- Antimicrobial Additive to Bed Surface

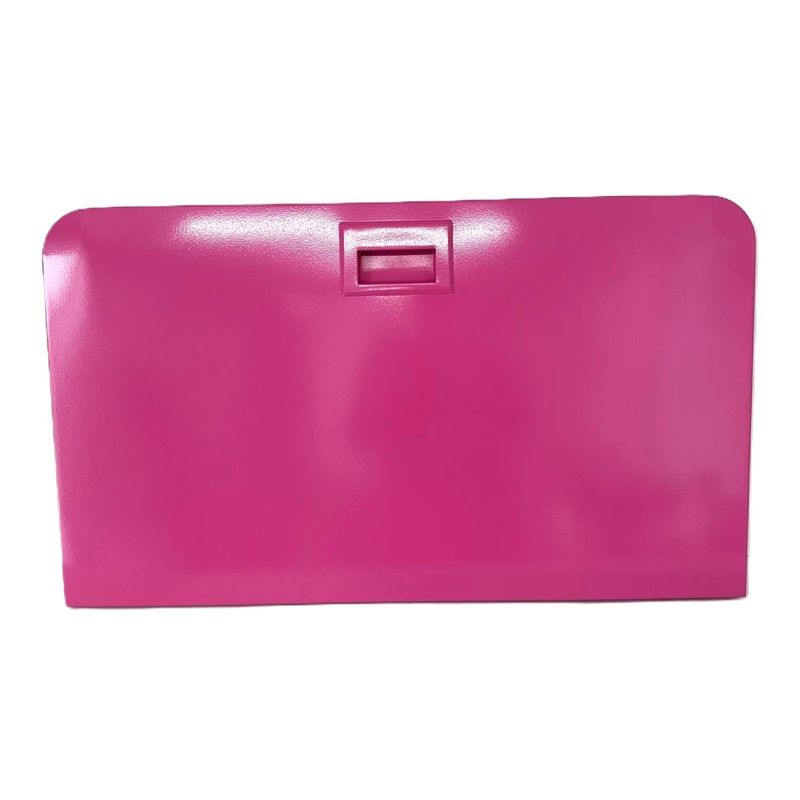

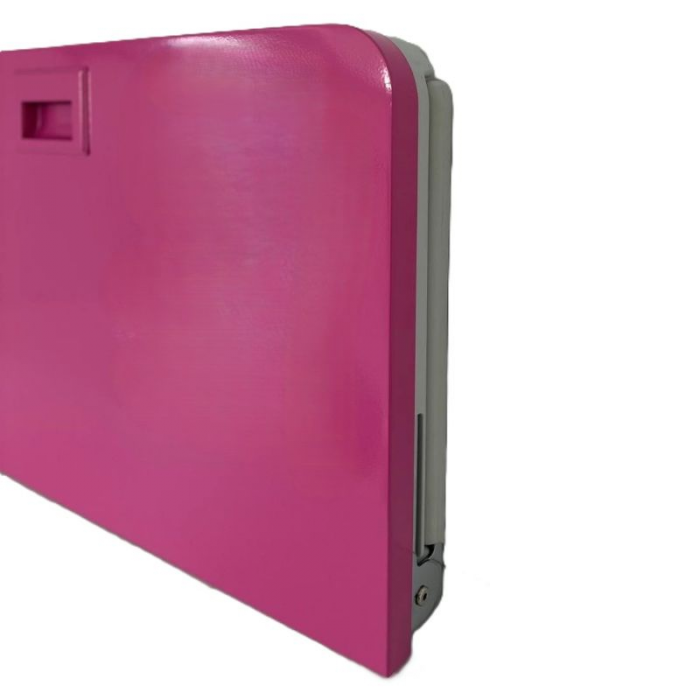

- Illustration Image: Baby Pink 4010
Baby Changer Certifications
- EN 12.221-1:2008+A1:2013 (50kg)
- EN 12.221-2:2008+A1:2013 (50kg)
- ASTM F2285-04
- ROHS-2: ENC1906256GZ20
- ENC1906256GZ20R1
- EN 12.221-1 & -2:2008+A1:2013
- ENC1906256GZ19
- ENC1906256GZ1~E1
- ASTM: ENC1906256GZ21E1
| Product Code | GW07050401-CC |
| Installation | Horizontal |
| Type | Surface Mounted |
| Safety Labels | 3 Different Languages |
| Weight (kg) | 13.75 |
| Certifications (Capacity kg) | 50kg (EN-12221-1 & EN-12221-2) |
| Wall Fixing Kit Supplied | Yes |
| Material | Stainless Steel |
| Measurements (mm) | H500mm x W870mm x 95mm (Open 514mm) |
| Projection Closed | 95mm |
| Supported Weight | 50kg (7 Stone) |
| ADA Compliant | Yes, (See Downloads) |
| HS / Commodity Code | 73249000 |
| GTIN/EAN | 5056678205716 |
What is the recommended ADA installation height?
The ADA installation height to the bottom of the table is 71cm (28") therefore the first fixing hole from the floor would be 85cm (33.5").
What is the recommended installation height of this baby changer?
The Baby changer underside should be 80cm (31.5") to the underside, this is a comfortuble height for both men and women. Therefore the first fixing hole from floor to the bottom would be 94cm (37").
Is this changer supplied with wall fixing kit?
Yes, supplied with heavy duty fixing kit. Please note: Always fix the baby changing station to the wall using the fixings supplied with the unit. Fixing screws should be fixed through the unit keyhole slots. Always follow step by step the "Installation and mounting manual" supplied with this baby changer.
What is the maximum load for this baby changer?
50kg (7 stone) See downloads for declaration of conformity certificate. (Internal tests ensure that the unit withstands loads of 100Kg).
Are spare parts available for this baby changer?
Yes, replacements parts available are: Mounting Hardware, Security strap set, Hydraulic set, Safety Labels set, Lateral hinges set.
| SKU | GW07050401-CC |
|---|---|
| GTIN | 5056678205716 |
| Weight | 13.500000 |
| Warranty | 5 Years |
| Quick Code | 8162 |
| Manufacturer | genwec |
| Delivery | 3-5 Working Days |
