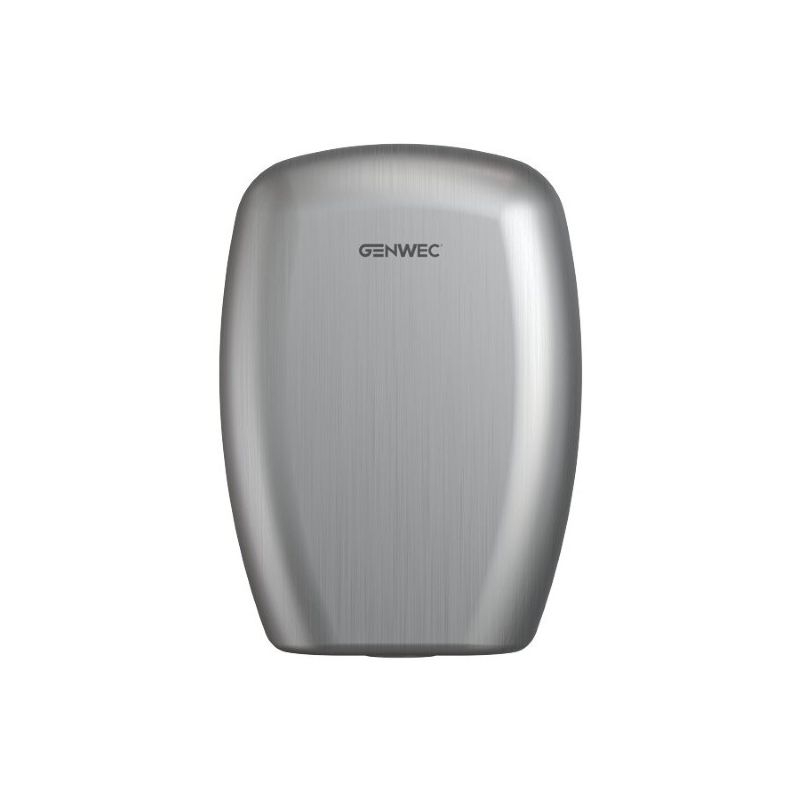

The Genwec Neo Automatic Brushed Stainless Steel Hand Dryer is a modern, compact, and high-performance drying solution engineered to meet the demands of contemporary washroom environments. Designed for both functionality and aesthetics, the unit features a robust brushed AISI 304 stainless steel cover, securely fastened with tamper-proof screws to a solid ABS base plate. With three wall-mounting points, it ensures a secure, stable, and vandal-resistant installation.

Powered by a high-pressure universal brush motor operating at 28,000 RPM (220–240V, Class F), the dryer is protected by a thermal cut-out for safety. It works in conjunction with a dual-plate Nickel-Chromium (NiCr) heating element, supported by a mica base and equipped with dual thermal limiters. The intelligent electronic control system keeps energy consumption low, with a standby mode drawing less than 0.5W. Touch-free operation is activated via a fully adjustable infrared sensor with a detection range of 6–15 cm, triggering a powerful and uniform air stream that dries hands in just 20 seconds. An automatic shut-off function engages after 30 seconds if an object obstructs the sensor, resuming normal function once cleared.

To support hygiene, the Neo dryer incorporates a HEPA H13 filter at the motor inlet, effectively removing 99.95% of airborne particles as small as 0.3 microns. Its slim profile meets ADA compliance standards, while its IP24 rating offers protection against water ingress. The unit delivers air at 250 km/h and 48°C, operates at a low noise level of 75 dBA (measured at 2 metres), and consumes only 3.48 amps with a total power input of 800W (400W motor + 400W heating element). Designed for durability and ease of maintenance, it offers modular replaceability for essential components such as the motor, heating element, infrared sensor, HEPA filter, and control board - making it a dependable and cost-effective choice for high-traffic restrooms.

Total Power: 800W
Heating Element Power: 400W
Motor Power: 400W
Disconnection Time: 30 Seconds
Consumption: 3,48A
Electrical Insulation: Class Ⅱ
Voltage: 220-240V
Frequency: 50-60Hz
IP Rating: IP24
Air Speed: 250km/h
Air Temperature: 48℃
Dimensions (mm): H282mm x W190mm x D100mm
Drying Time: 20 Seconds
Noise Level @ 2m: 75 dBA
RPM: 28,000
GTIN/EAN: 8433989614661

Technical

Product Code	GW01170401
Finish	Brushed Stainless Steel
Dimensions (mm)	H282mm x W190mm x P100mm
Voltage	220-240V
Frequency	50-60Hz
Air Speed	250km/h
Hepa Filter	Yes
Air Temperature	48ºC
Total Power	800W
Heating Element Power	400W
Motor Power	400W
Consumption	3.48 A
Electrical Insulation	Class Ⅱ
IP Rating	IP24
Drying Time	20 Seconds
Noise Level @ 2m	75 dBA
R/Min	28,000
Vandal Proof Disconnection	30 Seconds
Weight	3.75kg
GTIN/EAN	8433989614661

FAQs

Is the hand dryer equipped with an automatic sensor?

Yes, the Genwec Neo Hand Dryer features an infrared sensor that activates the dryer automatically when hands are placed beneath it, promoting hygiene by eliminating the need for physical contact.

What are the dimensions and weight of the unit?

The Genwec Neo Hand Dryer measures 190mm in width, 100mm in depth, and 282mm in height, with a weight of 3.75 kg, making it compact and suitable for various restroom sizes.

What is the power rating of the Genwec Neo Brushed Stainless Steel Hand Dryer?

The Genwec Neo Hand Dryer has a power rating of 800 watts, making it energy-efficient while providing effective hand drying performance.

What is the noise level during operation?

The Genwec Neo Hand Dryer operates at a noise level of 75dBA, providing a relatively quiet drying experience compared to other hand dryers in its class.
