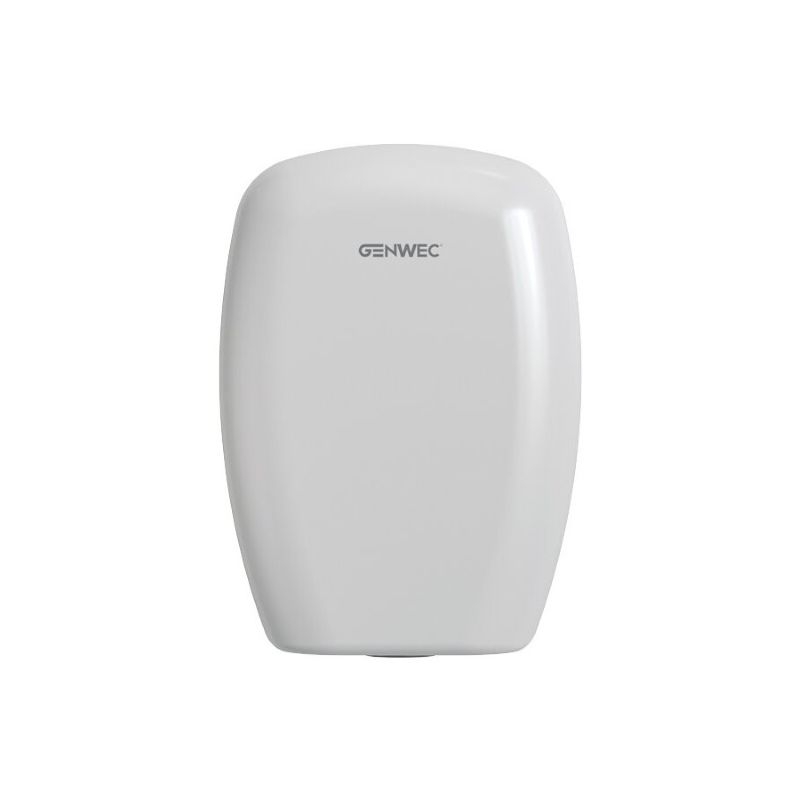

The Genwec Neo Automatic Hand Dryer is a sleek, compact, and high-efficiency solution engineered for contemporary washroom environments. It features a durable 3.0 mm thick ABS thermoplastic white cover, offering both long-lasting performance and clean, modern aesthetics. The cover is secured with tamper-proof screws to a robust ABS base plate, which is mounted to the wall at three fixed points - ensuring a stable, vandal-resistant installation.

At the heart of the dryer is a powerful high-pressure universal brush motor operating at 28,000 RPM (220–240V, Class F), safeguarded by a thermal cut-out. It works in tandem with a dual-plate Nickel-Chromium (NiCr) heating element supported by a mica base and protected by dual thermal limiters for added safety. The dryer’s intelligent electronic control system enables low energy consumption in standby mode (<0.5W), while an adjustable infrared sensor provides fully automatic, touch-free operation by detecting hands within a 6 - 15 cm range. The unit delivers a strong, even air stream capable of drying hands in just 20 seconds and features an automatic shut-off after 30 seconds if a stationary object is detected—automatically resetting once the obstruction is removed.

For improved hygiene, the Neo incorporates a HEPA H13 filter at the motor inlet, removing 99.95% of airborne particles as small as 0.3 microns. The unit is ADA compliant thanks to its slim profile and has an IP24 rating for protection against water ingress. It produces an airspeed of 250 km/h at an output temperature of 48°C, while maintaining a modest noise level of 75 dBA (measured at 2 metres). With a total input power of 800W - divided equally between the motor and heating element - and a current draw of just 3.48 amps, the Genwec Neo offers a hygienic, efficient, and reliable hand drying solution ideal for modern washrooms.

Dimensions (mm): H282mm x W190mm x D100mm
Heating Element Power: 400W
Motor Power: 400W
Total Power: 800W
Air Speed: 250km/h
Air Temperature: 48℃
Drying Time: 20 Seconds
Noise Level @ 2m: 75 dBA
RPM: 28,000
Disconnection Time: 30 Seconds
Consumption: 3,48A
Electrical Insulation: Class Ⅱ
Voltage: 220-240V
Frequency: 50-60Hz
IP Rating: IP24
GTIN/EAN: 8433989614647

Technical

Product Code	GW011700100
Finish	White ABS
Dimensions (mm)	H282mm x W190mm x P100mm
Voltage	220-240V
Frequency	50-60Hz
Air Speed	250km/h
Hepa Filter	Yes
Air Temperature	48ºC
Total Power	800W
Heating Element Power	400W
Motor Power	400W
Consumption	3.48 A
Electrical Insulation	Class Ⅱ
IP Rating	IP24
Drying Time	20 Seconds
Noise Level @ 2m	75 dBA
R/Min	28,000
Vandal Proof Disconnection	30 Seconds
Weight	2.8kg
GTIN/EAN	8433989614647

FAQs

What are the dimensions and weight of the unit?

The Genwec Neo Hand Dryer measures 190mm in width, 100mm in depth, and 282mm in height, with a weight of 2.8 kg, making it compact and suitable for various restroom sizes.

What is the power rating of the Genwec Neo White ABS Hand Dryer?

The Genwec Neo Hand Dryer has a power rating of 800 watts, making it energy-efficient while providing effective hand drying performance.

Is the hand dryer equipped with an automatic sensor?

Yes, the Genwec Neo Hand Dryer features an infrared sensor that activates the dryer automatically when hands are placed beneath it, promoting hygiene by eliminating the need for physical contact.

What material is the casing made from?

The casing is constructed from durable white ABS thermoplastic, known for its strength and resistance to impact, ensuring longevity in high-traffic areas.
