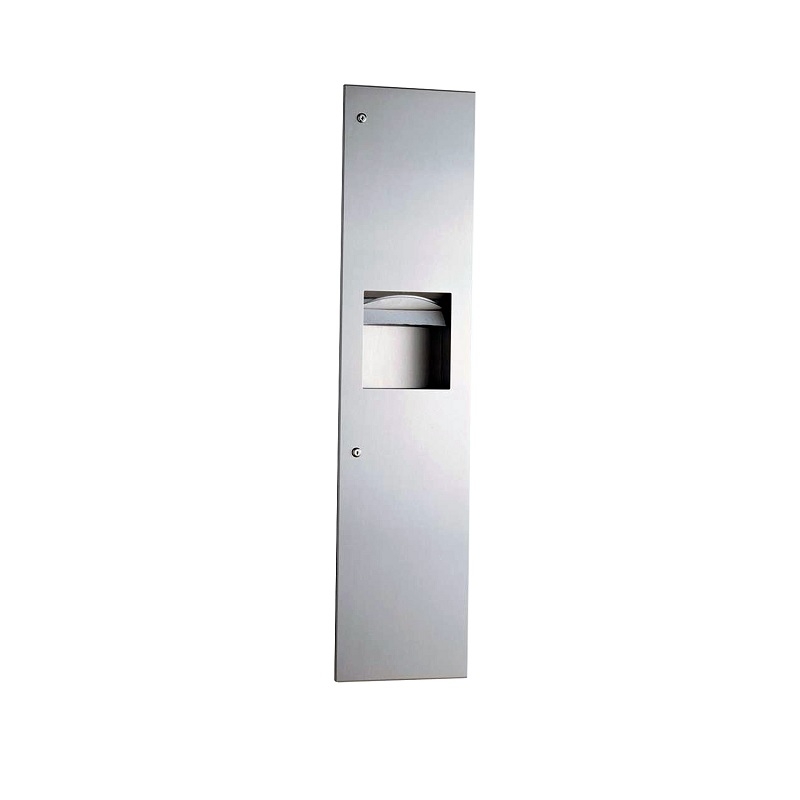

Bobrick Trimline Recessed Paper Towel Dispenser and Waste Bin 24L
- Material: Type 304 Stanless Steel
- Finish: Satin
- Capacity: 600 C-Fold, 800 Multifold or 1100 Singlefold Paper Towels
- ADA Compliant
Bobrick Trimline 24L Recessed Paper Towel Dispenser and Waste Bin
The Bobrick TrimLine Recessed Paper Towel Dispenser and Waste Bin features a sleek and durable design ideal for modern commercial restrooms. Constructed with 18-8, type-304 heavy-gauge stainless steel, the cabinet is all-welded for long-lasting performance. The door, made from 18-gauge (1.2mm) stainless steel with a satin finish, incorporates 9/16" (14mm) 90° return edges for enhanced rigidity.
It is secured to the cabinet with a concealed, full-length stainless steel piano hinge and includes a stainless steel cable door-swing limiter along with two tumbler locks keyed like other Bobrick accessories, providing security and a clean, flush appearance. The skirt is made from 22-gauge (0.8mm) stainless steel, also with a satin finish, to match the overall aesthetic.
The integrated paper towel dispenser is made of 22-gauge (0.8mm) stainless steel and features a rounded towel tray with a hemmed opening to prevent tearing during dispensing. It holds up to 600 C-fold, 800 multifold, or 1100 singlefold paper towels. The included waste container is a removable, leakproof, rigid moulded plastic unit with a 6.3-gallon (24-litre) capacity for convenient servicing. For enhanced functionality, the unit is compatible with the optional Bobrick Model No. 3803-130 TowelMate® accessory, which improves dispensing by allowing one-at-a-time towel release and preventing bulging or sagging.
Installation requires a framed rough wall opening measuring 11-1/2" wide by 53-5/8" high, with a minimum recessed depth of 3-3/4" (95mm). This unit is engineered for ease of maintenance, vandal resistance, and ADA compliance, making it a reliable and efficient addition to high-traffic restroom environments.
- Material: Type 304 Stanless Steel
- Finish: Satin
- Capacity: 600 C-Fold, 800 Multifold or 1100 Singlefold Paper Towels
- ADA Compliant
- Removable Waste Receptacle Capacity: 24 Litres
- Cable Door Swing Limiter
- Waste Container Material: Leak Proof Rigid Moulded Plastic
- Dual Tumbler Locks
- Optional Towelmate
- Ideal for Commercial Washrooms
- Stainless Steel Piano Hinge
- GTIN/EAN: 0716954001993
| Product Code | B3803 |
| Material | Type 304 Stainless Steel |
| Finish | Satin |
| Door Thickness | 18-Gauge 1.2mm Stainless Steel |
| Door Design | 9/16" (14 mm) 90° Return for Rigidity |
| Hinge | Concealed Full-Length Stainless Steel Piano Hinge |
| Locks | Two Flush Tumbler Locks |
| Towel Capacity | 600 C-Fold, 800 Multifold, or 1100 Singlefold Towels |
| Towel Tray | Rounded with Hemmed Opening |
| Waste Container Capacity | 24 Litres |
| Waste Container Material | Leakproof Rigid Moulded Plastic |
| Installation Rough Opening | H1362mm x W292mm |
| Minimum Recess Depth | 95mm |
| GTIN/EAN | 0716954001993 |
What types of paper towels does the B-3803 accommodate?
It is adjustable to dispense C-fold, multifold, or singlefold paper towels without needing additional adapters.
What is the towel capacity of the dispenser?
It can hold up to 600 C-fold, 800 multifold, or 1100 singlefold paper towels.
What material is the unit made from?
The cabinet and door are made from heavy-gauge Type-304 stainless steel with a satin finish, ensuring durability and corrosion resistance.
How is the door secured?
The door is secured with a concealed full-length stainless steel piano hinge, a stainless steel cable door-swing limiter, and two flush tumbler locks keyed alike to other Bobrick accessories.
What is the waste container capacity and material?
The waste container has a 6.3-gallon (24-litre) capacity and is made of leakproof, rigid moulded plastic. It is removable for easy servicing.
How is the unit installed?
The unit requires a framed rough wall opening of 11-1/2" wide by 53-5/8" high, with a minimum recessed depth of 3-3/4". It is mounted with sheet-metal screws (not furnished) and shims for secure installation.
| SKU | B3803 |
|---|---|
| GTIN | 0716954001993 |
| Weight | 11.340000 |
| Warranty | 2 Years |
| Quick Code | 3702 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
