Bobrick Trimline Recessed Paper Towel Dispenser and 14.4 Ltr Waste Bin
- Material:Type 304 Stainless Steel
- Satin Finish
- Waste Capacity: 14.4 Litres
- Security: Dual Tumbler Locks

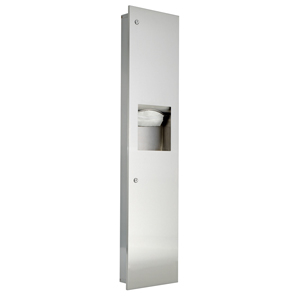

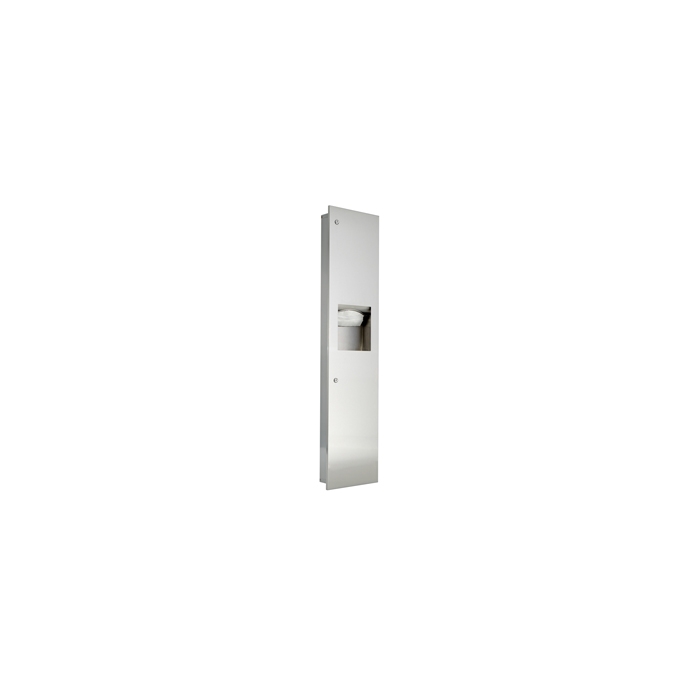

Bobrick Trimline Recessed Paper Towel Dispenser and Waste Bin - 14.4Ltrs
The Bobrick recessed paper towel dispenser and waste receptacle is constructed from high-quality 18-8, type-304 heavy-gauge stainless steel, ensuring durability and resistance to corrosion. The unit features an all-welded cabinet for structural integrity and a satin-finish 18-gauge (1.2mm) stainless steel door with a 9/16" (14mm) 90° return for added rigidity.
The door is attached with a concealed, full-length stainless steel piano-hinge and includes a stainless steel cable door-swing limiter and two tumbler locks keyed to match other Bobrick accessories. The integrated paper towel dispenser is also made from 22-gauge (0.8mm) type-304 stainless steel and includes a rounded, hemmed towel tray opening to prevent tearing during use.
It has a capacity of 600 C-fold or 800 multifold paper towels and is compatible with singlefold towels without requiring extra adapters or trays. The leak-proof waste container is crafted from rigid moulded plastic, designed for easy removal and servicing, with a capacity of 14.4 litres. For enhanced functionality, the optional Bobrick Model No. 3803-130 TowelMate® accessory can be added.
This accessory enables controlled, one-at-a-time dispensing of towels, reducing waste and preventing bunching, bulging, or sagging. Its 90-degree return towel guide prevents towels from falling forward when the door is opened. Installation requires a framed wall opening of 11-1/2" wide by 53-5/8" high (292 x 1362mm), with a minimum recessed depth of 3-3/4" (95mm).
Adequate clearance must be provided for wall obstructions and proper alignment ensured using shims before securing the unit with #8 x 1-1/4" sheet-metal screws. This fixture meets Bobrick’s specifications for stainless steel washroom accessories, combining functionality with a sleek, vandal-resistant design ideal for high-traffic commercial restrooms.
- Material:Type 304 Stainless Steel
- Satin Finish
- Waste Capacity: 14.4 Litres
- Security: Dual Tumbler Locks
- Paper Towels: 600 C-Fold or 800 Multifold
- Secure Access: Steel Cable Door Limiter
- Leak Proof Waste Container
- Waste Container Material: Rigid Moulded Plastic
- Recessed Installation (mm): H1362mm x W292mm x D95mm
- Full Length Stainless Steel Piano Hinge
- GTIN/EAN: 0716954002037
| Product Code | B38034 |
| Material | Type 304 Stainless Steel |
| Finish | Satin |
| Bin Capacity | 14.4L |
| Waste Bin Material | Rigid Moulded Plastic |
| Paper Towel Capacity | 600 C-Fold or 800 Multifold |
| Security | Dual Tumbler Locks |
| Hinge | Full Length Stainless Steel Piano Hinge |
| Secure Access | Steel Cable Door Limiter |
| Recessed Installation | H1362mm x W292mm x D95mm |
| GTIN/EAN | 0716954002037 |
What is the Bobrick B-38034?
The B-38034 is a recessed, combination unit that integrates a paper towel dispenser and a waste receptacle into a single, space-saving fixture. It's part of Bobrick’s TrimLineSeries™, designed for commercial restrooms seeking a sleek and durable solution.
What materials are used in its construction?
The unit is constructed from type-304 stainless steel with a satin finish. The door is made of 18-gauge (1.2mm) stainless steel, while the cabinet is all-welded for strength and durability.
What are the dimensions and installation requirements?

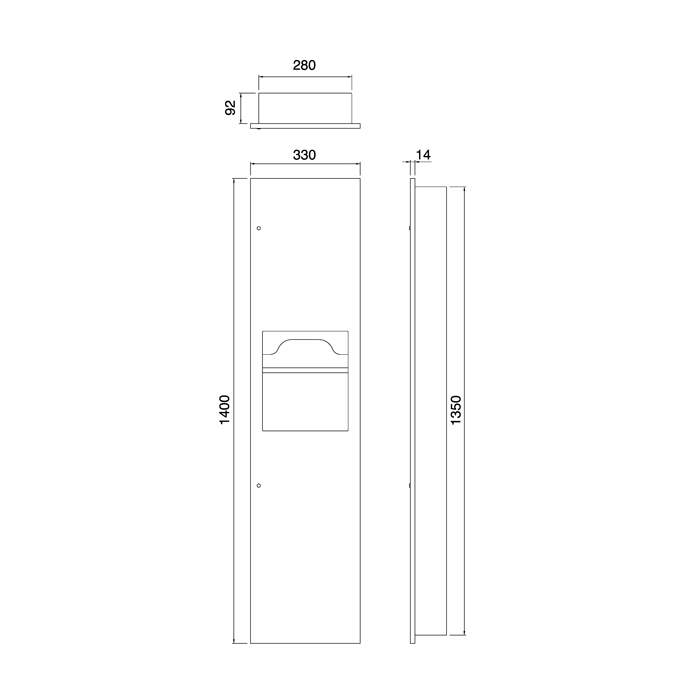

The unit measures 13 inches (330mm) in width, 55-1/8 inches (1400mm) in height, and 3-5/8 inches (92mm) in depth. It requires a rough wall opening of 11-1/2 inches (292mm) wide, 53-5/8 inches (1362mm) high, and a minimum depth of 3-3/4 inches (95mm).
What types of paper towels does it dispense, and what is the capacity?
The dispenser accommodates 600 C-fold or 800 multifold paper towels. It includes a built-in TowelMate® feature that ensures one-at-a-time dispensing, reducing waste and towel usage.
Is the unit ADA compliant?
Yes, when installed correctly, the B-38034 complies with ADA (Americans with Disabilities Act) requirements for accessibility.
How is the unit secured?
The door is equipped with two tumbler locks that are keyed like other Bobrick washroom accessories. It also features a stainless steel cable door-swing limiter to prevent damage to the unit or surrounding walls.
How is the waste receptacle serviced?
To service the waste receptacle, unlock the door using the provided key and remove the plastic waste container. The design allows for straightforward removal and replacement.
| SKU | B38034 |
|---|---|
| GTIN | 0716954002037 |
| Weight | 10.000000 |
| Warranty | 2 Years |
| Quick Code | 3152 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
