Bobrick Matt Black Recessed Toilet Tissue, Seat Cover and Waste Disposal
- Material: Type 304 Stainless Steel
- Matt Black Finish
- Left Side of Toilet While Seated
- Holds 500 Toilet Seat Covers

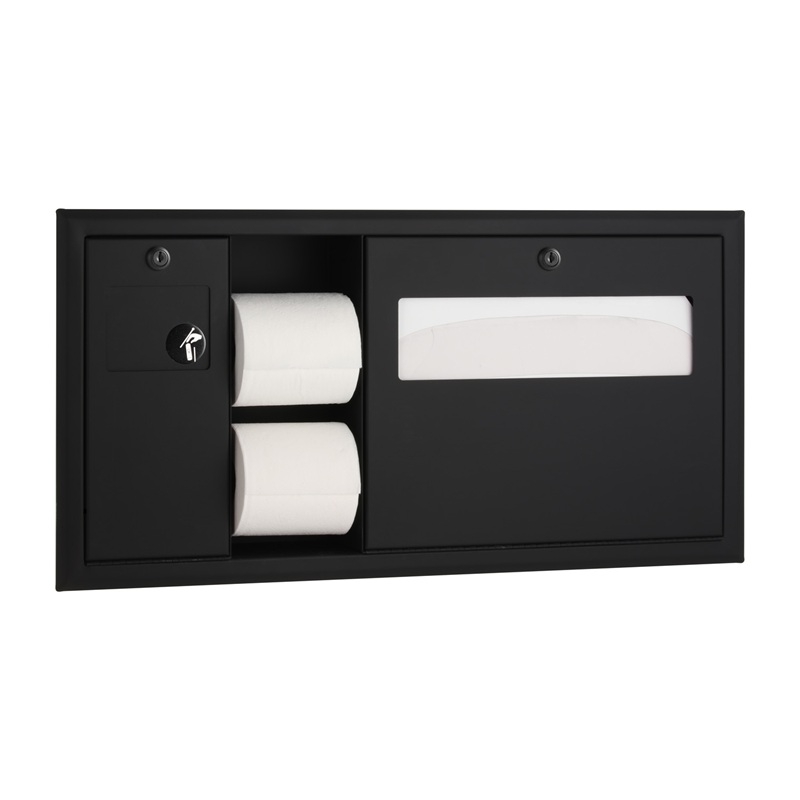

Bobrick Recessed Toilet Tissue, Seat Cover and Waste Disposal - Matt Black
The Bobrick recessed combination unit is a multifunctional fixture constructed from high-quality 18-8, Type-304 heavy-gauge stainless steel with all-welded construction, ensuring durability and long-term performance in commercial restroom settings. Available in a satin or matt black finish, the cabinet features seamless construction and exposed surfaces that enhance both functionality and aesthetic appeal. The unit includes a bevelled, one-piece flange made from 22-gauge stainless steel, designed to sit flush with the wall for a clean, professional appearance.
Two seamless 18-gauge stainless steel doors are mounted to the cabinet using full-length stainless steel piano hinges and are secured with a keyed tumbler lock, compatible with other Bobrick washroom accessories. Inside the cabinet, the combination unit integrates two toilet tissue dispensers, each made from 22-gauge stainless steel and equipped with chrome-plated plastic spindles that feature heavy-duty internal springs. These dispensers accommodate standard-core tissue rolls up to 5-1/4" (135mm) in diameter (approximately 1800 sheets).
The waste disposal panel is also made of 22-gauge stainless steel with hemmed edges for safety and a spring-loaded, full-length piano hinge for smooth operation. It includes a clear "drop here" graphic symbol to indicate waste disposal. The internal 0.5-gallon (1.9-litre) waste receptacle is made from leak-proof moulded polyethylene and is fully removable for efficient servicing. The unit also includes a toilet seat-cover dispenser capable of holding 500 single- or half-fold paper covers.
For installation, a framed rough wall opening of 26-5/8" (675mm) wide by 12-5/8" (320mm) high is required, with a minimum recessed depth of 4" (102mm). Proper coordination with mechanical systems is essential to avoid interference from plumbing or electrical infrastructure. If the unit is installed above a wainscot, a filler such as an aluminium channel may be used to eliminate gaps between the flange and the wall surface. The unit is mounted securely using shims and #8 x 1-1/4" (4.2 x 30mm) sheet-metal screws at designated mounting points.
- Material: Type 304 Stainless Steel
- Matt Black Finish
- Left Side of Toilet While Seated
- Holds 500 Toilet Seat Covers
- Self Closing Disposal Panel
- Removable Waste Disposal Unit
- Waste Capacity: 1.9L
- Duo Toilet Roll Dispenser
- Secure Access: Tumbler Key Lockable
- ADA Compliant
- Seamless One Piece Flange
- Rough Wall Opening: H320mm x W675mm x D102mm
| Product Code | B3091.MBLK |
| Material | Type 304 Stainless Steel |
| Finish | Matt Black |
| Cabinet Gauge | Heavy Gauge Stainless Steel |
| Flange | 22-Gauge (0.8mm), One-Piece Seamless |
| Doors (2) | Seamless, Piano Hinged and Tumbler Locked |
| Toilet Roll Dispensers (2) | Chrome Plated Plastic Spindles with Internal Springs |
| Toilet Roll Capacity | 2 Standard Rolls 135mm Diameter Approx. |
| Seat Cover Capacity | Holds 500 Single Covers |
| Waste Receptacle | Leak Proof Moulded Polyethylene, Removable |
| Waste Receptacle Capacity | 1.9L |
| Rough Wall Opening (mm) | H320mm x W675mm |
| Recessed Depth (mm) | 102mm |
| Compliance | ADA Compliant |
| Installation Orientation | Mounts on Left Side of Toilet |
What materials is the B-3091.MBLK made from?
The unit is made from high-quality Type 304 stainless steel with a matt black powder-coated finish. It features all-welded construction for enhanced durability in commercial environments.
What is the capacity of the toilet seat-cover dispenser?
It holds up to 500 single-fold or half-fold paper toilet seat covers.
How many toilet paper rolls does it hold?
The unit includes two dispensers, each holding a standard-core roll up to 5-1/4" (135mm) in diameter (approximately 1,800 sheets).
Is the waste receptacle removable?
Yes, the moulded polyethylene waste bin is leak-proof and removable for easy servicing.
How is the unit installed?
It is recessed into the wall. Installation requires a framed rough wall opening of 26-5/8" wide by 12-5/8" high with a minimum depth of 4" (102mm).
Is the disposal panel self-closing?
Yes, the disposal panel is spring-loaded and self-closing for hygiene and user convenience.
| SKU | B3091.MBLK |
|---|---|
| GTIN | No |
| Weight | 3.000000 |
| Warranty | 2 Years |
| Quick Code | 8187 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
