Scudo Middleton Rimless Back to Wall Toilet Pan and Slim Seat with Concealed Cistern
- Back To Wall Toilet Pan with Seat and Concealed Cistern
- Soft Closing Seat Included
- Concealed Cistern Included (Bottom Inlet)
- Ceramic Toilet
Scudo Middleton Rimless Back to Wall Toilet Pan with Slim Seat and Concealed Cistern
Upgrade your bathroom with the Scudo Concealed Cistern and Back to Wall Pan Set with Soft-Closing Seat, combining sleek modern design, reliable performance, and lasting durability. Designed for a space-saving, minimalist installation, the concealed cistern hides all plumbing components behind a wall or furniture unit, creating a clean, contemporary look that enhances any bathroom interior.
Constructed from high-density polyethylene (HDPE), the cistern offers exceptional strength, resistance to cracking, and long-term reliability - making it perfect for both domestic and commercial settings. Its dual-flush system provides eco-friendly water efficiency, with a 3-litre half flush for light use and a 6-litre full flush for powerful performance, reducing water consumption without compromising function.
The bottom inlet design allows for flexible installation, while front and top access panels ensure straightforward maintenance. Compatible with a wide range of wall-hung or back-to-wall pans, this concealed cistern provides both versatility and convenience.
The Scudo Back to Wall Pan complements the system with its sleek ceramic design, offering timeless appeal, effortless cleaning, and exceptional durability. Pair it with the Scudo Soft-Closing Seat, featuring a slim, modern profile and gentle close mechanism that prevents slamming - ideal for family homes and high-traffic environments.
A chrome-plated dual-flush button is included, adding a stylish finishing touch that can be either surface- or flush-mounted to suit your preferred design. Built to WRAS-approved standards, the Scudo Concealed Cistern guarantees quality, water efficiency, and compliance with UK regulations for total peace of mind.
Crafted from durable UREA plastic, the Scudo Slim Soft-Closing Seat also includes quick-release hinges for easy cleaning and maintenance - offering the perfect blend of practicality, comfort, and modern style.
- Back To Wall Toilet Pan with Seat and Concealed Cistern
- Soft Closing Seat Included
- Concealed Cistern Included (Bottom Inlet)
- Ceramic Toilet
- Toilet Seat - UREA Plastic
- Toilet Seat - Quick Release Hinges
- Cistern Minimum Water Pressure: 1 Bar
- WRAS Approved
- Top Fix Seat
- Chrome Dual Flush Valve
- GTIN/EAN (Toilet): 5060500644161
- GTIN/EAN (Seat): 5060500643195
- GTIN/EAN: (Cistern): 5060991254238

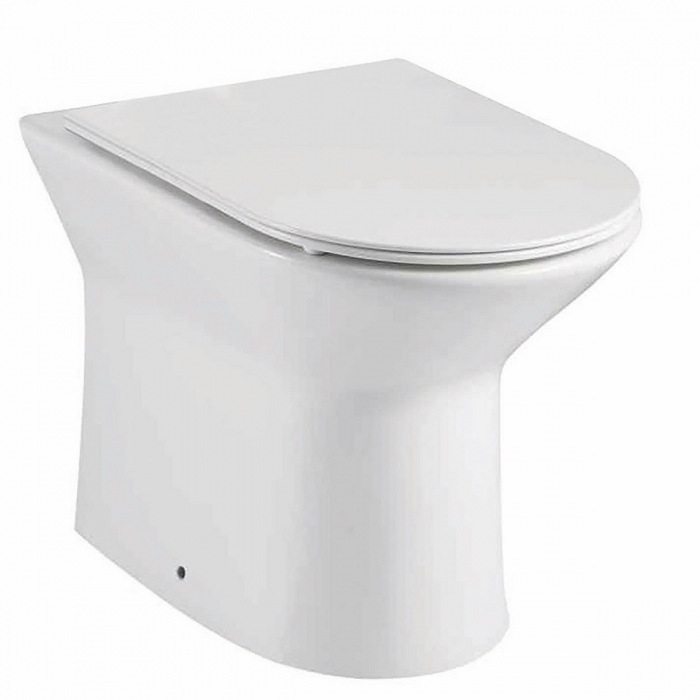

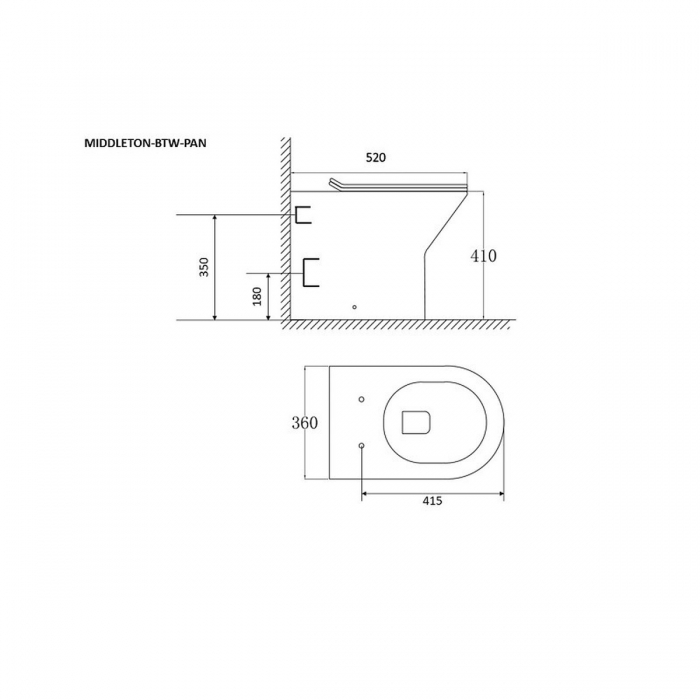

| Product Code (BTW Toilet) | MIDDLETON-BTW-PAN |
| Material | Ceramic |
| Installation Type | Floor Mounted |
| Finish | White Gloss |
| Dimensions (mm) | H410mm x W360mm x D520mm |
| Floor to Centre of Soil Pipe (mm) | 180mm |
| Wall to Start of Soil Pipe (mm) | 25mm |
| GTIN/EAN | 5060500644161 |

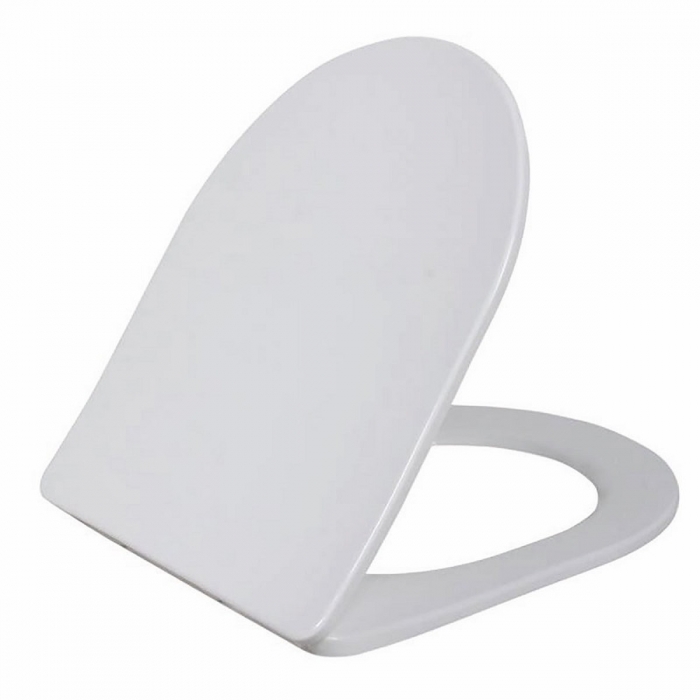

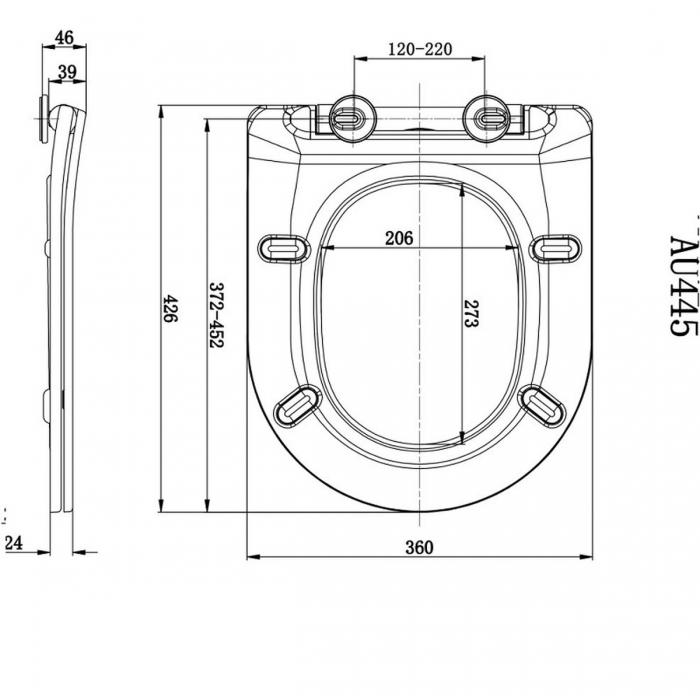

| Product Code (Toilet Seat) | 999-SEAT-SLIM |
| Material | UREA Plastic |
| Installation Type | Top Fix |
| Colour | White |
| Soft Close | Yes |
| Quick Release | Yes |
| Shape | D-Shape |
| Adjustment (mm) | 45-200mm |
| GTIN/EAN | 5060500643195 |

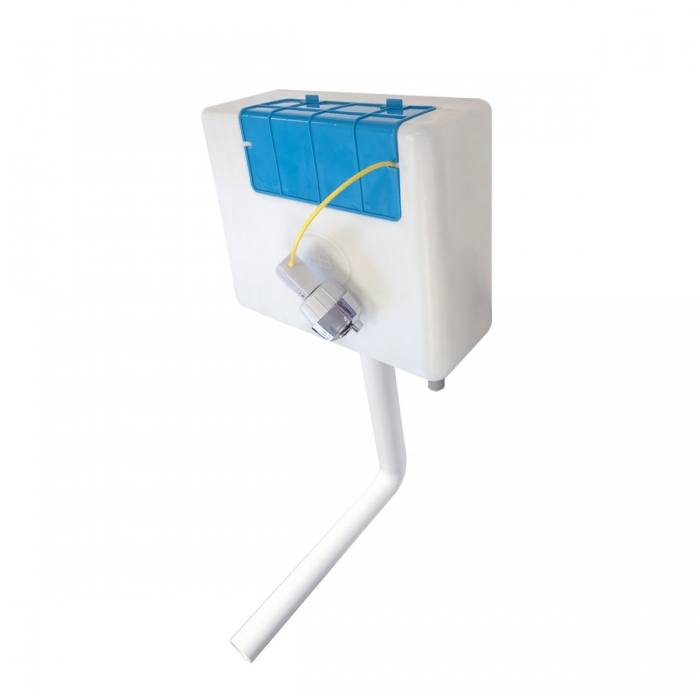

| Product Code (Cistern) | CISTERN003W |
| Installation | Wall Mounted |
| Material | Plastic (HDPE) |
| Finish | White with Chrome Button |
| Dimensions (mm) | H295mm x W340mm x D140mm |
| WRAS Approved | Yes |
| Water Inlet Location | Bottom Entry |
| Flush Volume | 6/3L |
| Flush Type | Cable Operated, Push Button |
| Minimum Pressure | 1 Bar |
| GTIN/EAN | 5060991254238 |
What material is the cistern constructed from?
This is made from HDPE - High Density Polyethylene Plastic.

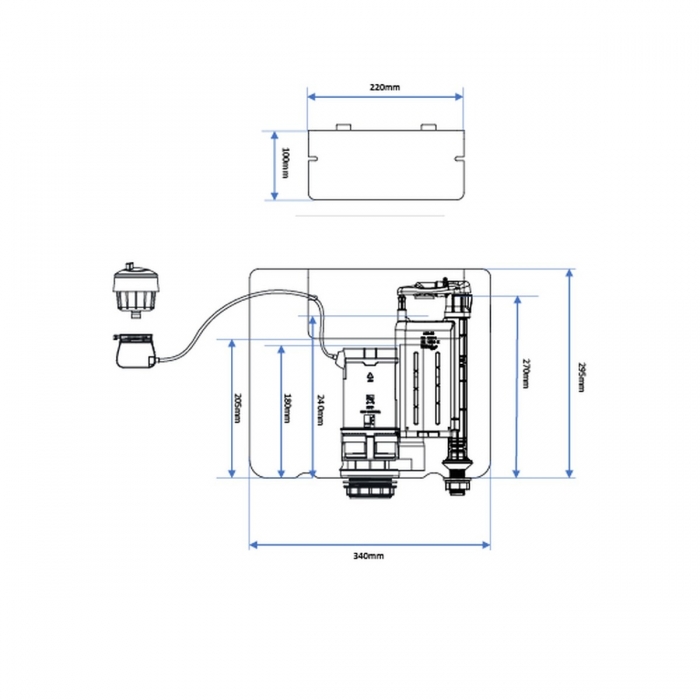

What are the dimensions of the Cistern?
The dimensions are H295mm x W340mm x D/P140mm,
Is this WRAS Approved?
Yes the flush valve is WRAS approved.
Is it Air-Gap Compliant?
Yes this is AG Compliant.
What does "rimless" mean for this toilet pan?
A rimless toilet lacks the traditional rim inside the bowl. This design allows water to flush the entire bowl more efficiently and evenly, making it easier to clean and more hygienic as it prevents bacteria and dirt from building up under the rim.
What does "back to wall" mean?
A back to wall toilet pan is designed to sit flush against the wall, with all plumbing and pipework concealed either within the wall or behind a furniture unit. This gives a sleek, minimalist look and makes cleaning easier.
Is the Scudo Middleton Rimless Toilet Pan compatible with any seat?
Yes, the pan is compatible with most standard toilet seats. It is recommended to use a seat that fits the dimensions of the pan. The Scudo Middleton soft-close seat is a popular choice for this model.
What are the flush volume options?
Dual-flush: 3 Litres (Half Flush) and 6 Litres (Full Flush).
Where is the water inlet located?
This cistern has a bottom inlet.
| SKU | MIDDSEATCISTERN |
|---|---|
| Quick Code | 8463 |
| GTIN | No |
| Weight | 15.000000 |
| Warranty | 5 Years |
| Manufacturer | Scudo |
| Delivery | 1-2 Working Days |
