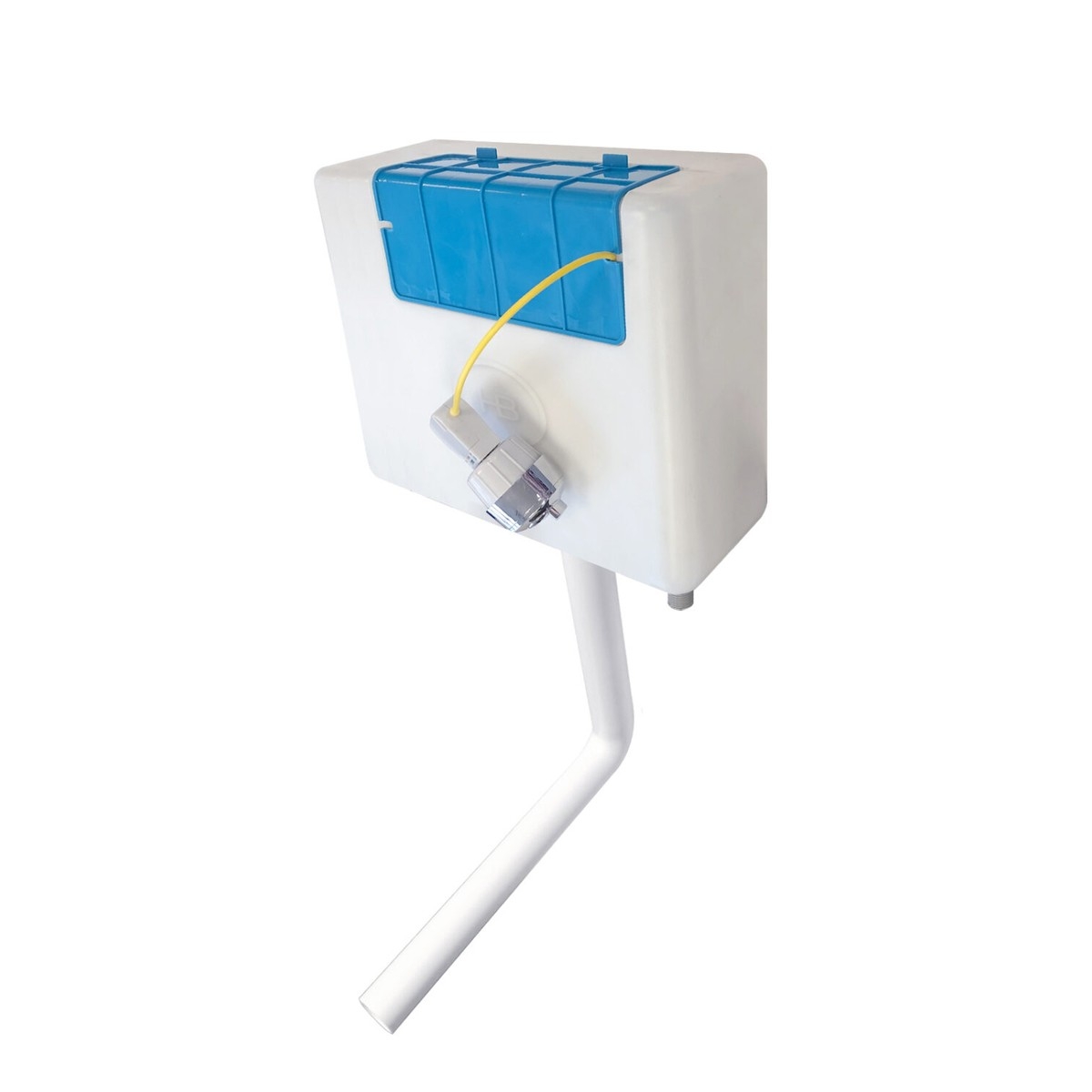

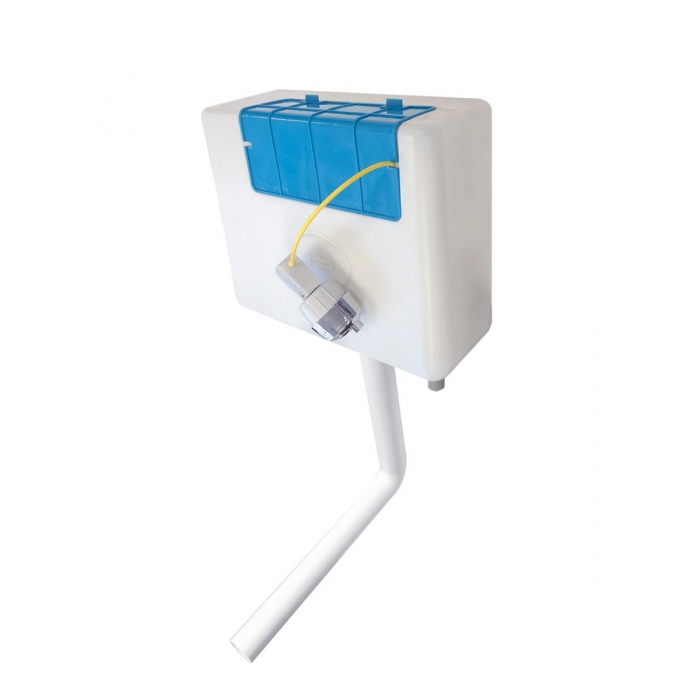

Scudo Bottom Inlet Concealed Toilet Cistern and Chrome Push Button

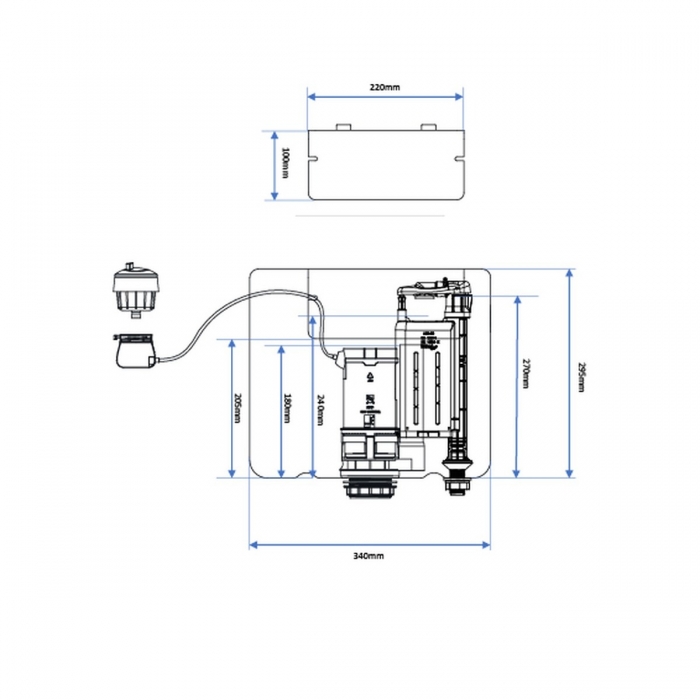

- Dimensions (mm): H295mm x W340mm x D140mm
- Concealed Bottom Inlet Cistern with Push Button
- Material: HDPE (High Density Polyethylene) Plastic.
- Dual Flush System
Scudo Concealed Toilet Cistern with Bottom Inlet and Chrome Push Button
Upgrade your bathroom with the Scudo Concealed Cistern, engineered for reliable performance, sleek design, and long-lasting durability. This concealed cistern provides a stylish, space-saving solution that hides all plumbing elements behind a wall or furniture unit for a clean, minimalist finish.
Constructed from high-density polyethylene (HDPE), it offers exceptional strength and resistance to cracking, making it ideal for both residential and commercial settings. The dual-flush system promotes water efficiency with a 3-litre half flush for light use and a 6-litre full flush for thorough performance - reducing water waste without compromising on power.
Featuring a bottom inlet for flexible installation and front or top access panels for easy maintenance, the Scudo cistern is designed for convenience and versatility. It’s fully compatible with a wide range of wall-hung and back-to-wall pans, allowing for adaptable bathroom layouts.
A chrome-plated round dual-flush button is included, offering a refined, contemporary look that can be surface - or flush-mounted to suit your style. Built to WRAS-approved standards, the Scudo Concealed Cistern guarantees high quality, safety, and efficiency across UK water systems.
- Dimensions (mm): H295mm x W340mm x D140mm
- Concealed Bottom Inlet Cistern with Push Button
- Material: HDPE (High Density Polyethylene) Plastic.
- Dual Flush System
- Minimum Water Pressure: 1 Bar
- WRAS Approved
- Chrome Dual Flush Button
- Front and Top Maintenance Access
- GTIN/EAN: 5060991254238
Product Code | CISTERN003W |
Material | Plastic (HDPE) |
Installation | Wall Mounted |
Finish | White with Chrome Button |
Dimensions (mm) | H295mm x W340mm x D140mm |
WRAS Approved | Yes |
Water Inlet Location | Bottom Entry |
Flush Volume | 6/3L |
Flush Type | Cable Operated, Push Button |
Minimum Pressure | 1 Bar |
GTIN/EAN | 5060991254238 |
What are the dimensions of the Cistern?
The dimensions are H295mm x W340mm x D/P140mm,
Is this WRAS Approved?
Yes the flush valve is WRAS approved.
Is it Air-Gap Compliant?
Yes this is AG Compliant.
What are the flush volume options?
Dual-flush: 3 Litres (Half Flush) and 6 Litres (Full Flush).
Where is the water inlet located?
This cistern has a bottom inlet.
What material is the cistern constructed from?
This is made from HDPE - High Density Polyethylene Plastic.
SKU | CISTERN003W |
---|---|
Quick Code | 8461 |
GTIN | 5060991254238 |
Weight | 1.450000 |
Warranty | 5 Years |
Manufacturer | Scudo |
