Prestige Matt Black Multipurpose Soft Closing Square Waste Chute - 220mm
- Material: Type 304 Stainless Steel
- Finished in Matt Black
- Soft Close Mechanism
- Lid Dimensions (mm): 220mm x 220mm

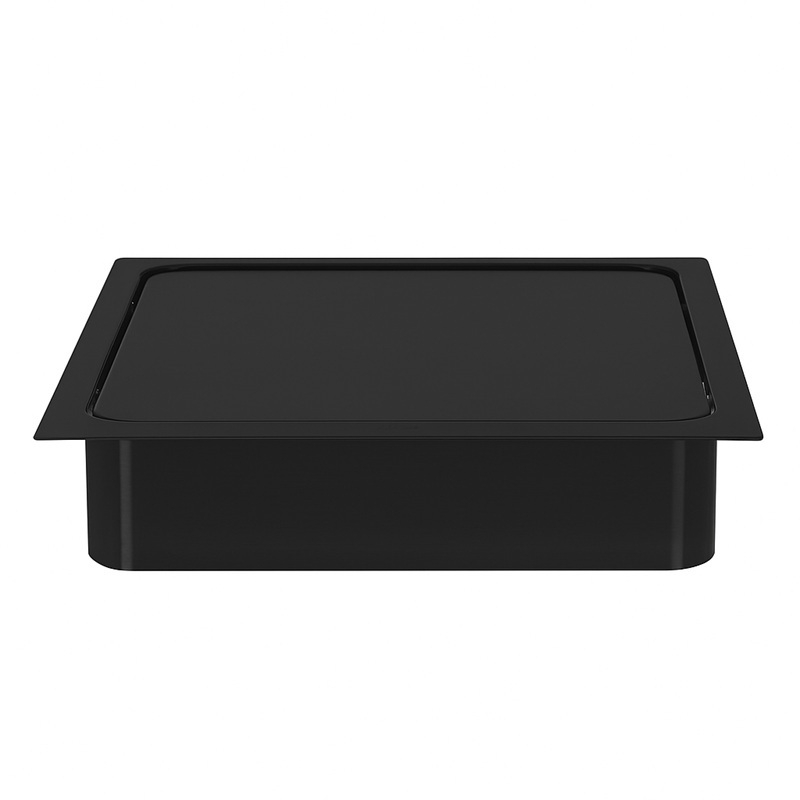

Prestige Matt Black 220mm Multipurpose Soft Closing Square Waste Chute

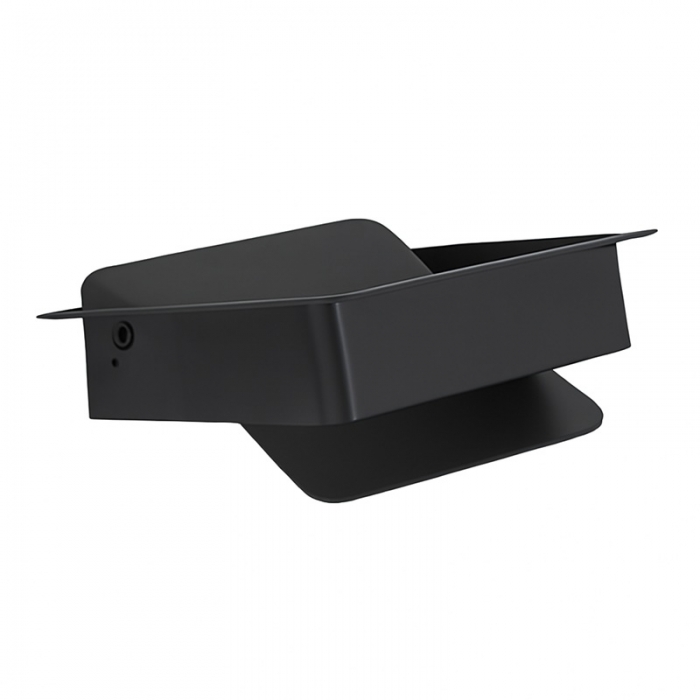

The Sugatsune AD‑KH020‑HLB is a precision-engineered, stainless steel multipurpose lid designed for soft-close applications such as countertop chutes, trash openings, or linen chutes. Crafted from high-grade 304 stainless steel with a durable matt black finish, this lid features an integrated damper to prevent slamming and ensure a smooth closure

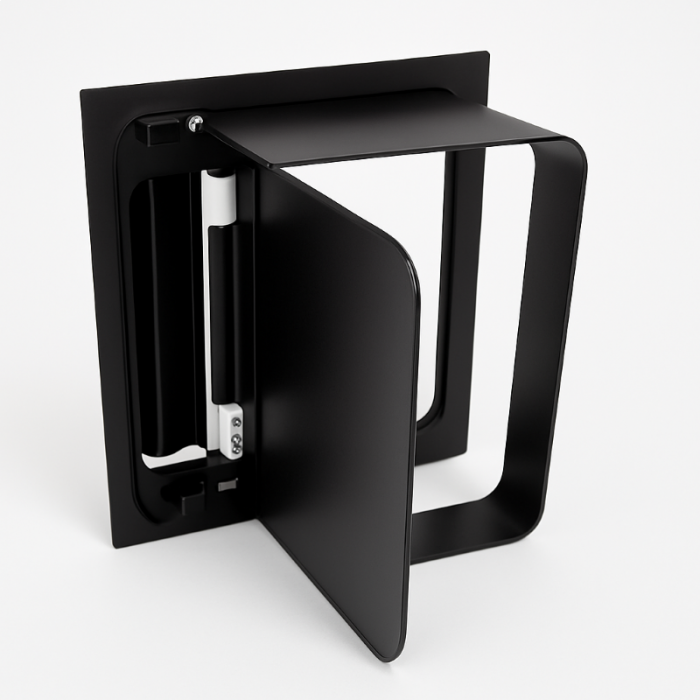

Measuring 220mm × 220mm with a lid thickness of 1.2mm and a height of 50mm, the unit offers wide access and a balance-weighted hinge that automatically returns the lid to a horizontal position.
The damper-equipped mechanism accommodates temperatures between 0–40 °C (32–104 °F) and provides reliable, quiet operation. Installation is designed for overhead mounting, and the lid weighs approximately 1.4 kg. This multipurpose lid, with its seamless stainless steel build, soft-close functionality, and robust performance, is ideal for architectural and industrial installations requiring both form and function.
- Material: Type 304 Stainless Steel
- Finished in Matt Black
- Soft Close Mechanism
- Lid Dimensions (mm): 220mm x 220mm
- Height (mm): 50mm
- Thickness: 1.2mm
- Temperature Range: 0°C and 40°C
- Internal Measurements: 196mm x 196mm
- Soft Rounded Corners
- Cut Out Size: 197mm x 197mm
- 100% Plastic Free Packaging
| SKU | AD-KH020-HLB |
|---|---|
| Finish | Matt Black Stainless Steel |
| Height (mm) | 50mm |
| Outer Dimensions (mm) | 220mm x 220mm |
| Inside Dimensions (mm) | 196mm x 196mm |
| Waste Disposal area (cm2) | 24.3 (135mm x 180mm) |
| Hole Cut out Diameter (mm) | 197mm - 197mm |
| Steel Gauge (mm) | 1.2mm |
| Installation | Counter Tops Only |
| Mechanism Operating Temperatures (C) | 0 - 40℃ |
| Steel Type | Type 304 |
| Weight (kg) | 1.4kg |
What materials is the AD‑KH020‑HLB made from?
The lid is made from high-quality AISI 304 stainless steel, offering excellent corrosion resistance and durability, ideal for hygiene-sensitive environments.
Does the flap close automatically?
Yes, the lid features a built-in soft-close damper and an automatic return mechanism that ensures it closes smoothly and quietly after use.
What are the dimensions of the flap lid?
The flap lid measures 220mm x 220mm with a height of 50mm and a stainless steel thickness of 1.2mm.
Can it be installed horizontally in a countertop?
Yes, it is designed specifically for overhead or horizontal surface installation, such as on countertops, waste chutes, or transfer openings.
What temperature range can the lid operate in?
The product functions reliably in environments ranging from 0°C to 40°C.
| SKU | AD-KH020-HLB |
|---|---|
| GTIN | No |
| Weight | 1.400000 |
| Warranty | 10 Years |
| Quick Code | 8191 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
