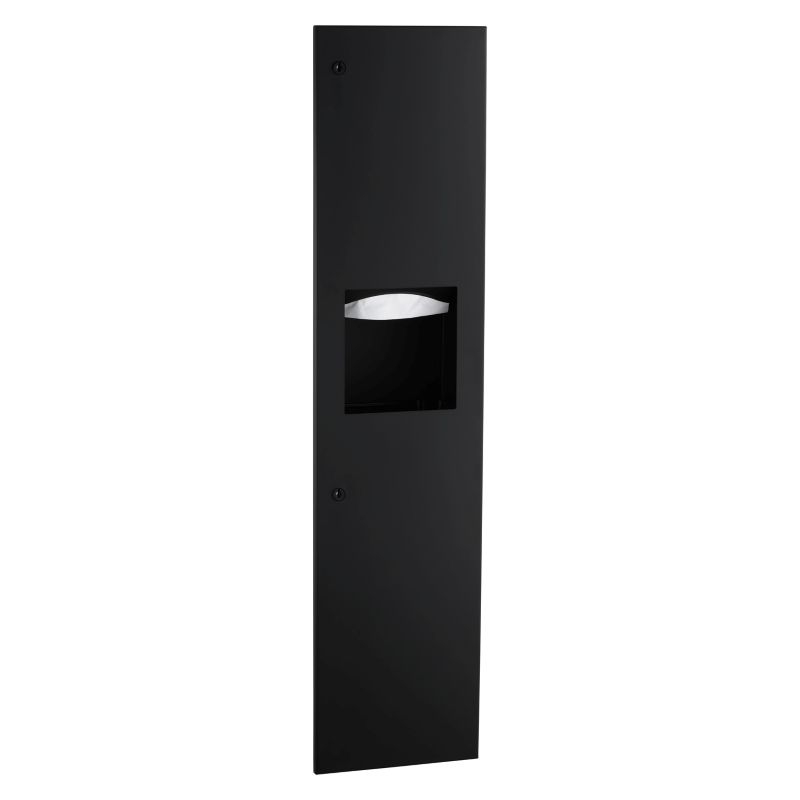

Bobrick Recessed Paper Towel Dispenser and Waste Receptacle - Matt Black
- Height: 1400mm
- Width: 330mm
- Projection: 106mm
Bobrick Matt Black Paper Towel Dispenser and Waste Receptacle - Recessed
The Bobrick B-38034.MBLK is a recessed paper towel dispenser and waste receptacle from the TrimLineSeries™, designed to deliver modern aesthetics and reliable functionality in commercial washroom settings. Expertly crafted from heavy-gauge, Type-304 stainless steel with an all-welded construction, it provides superior durability and resistance to corrosion. The unit's exposed surfaces come in a sleek matte black powder-coated finish or satin stainless steel, allowing it to complement a range of interior designs.
Its 18-gauge (1.2 mm) stainless steel door features 9/16" (14 mm) 90° return edges for enhanced structural strength and is affixed to the cabinet with a concealed, full-length stainless steel piano hinge for a clean, seamless look. The door includes a stainless steel cable swing limiter and two flush-mounted tumbler locks—keyed to match other Bobrick accessories—ensuring secure, tamper-resistant access without protrusions.
Inside, the dispenser is made of 22-gauge (0.8 mm) stainless steel and holds up to 600 C-fold or 800 multifold paper towels, requiring no adjustments or adapters. It features the Bobrick TowelMate® system, which includes a 90° return towel guide to prevent paper towels from falling out during servicing. The assembly includes a central nylon rod secured with stainless steel screws and stop screws, locking it firmly in place. This field-replaceable component can also be retrofitted into units made before February 2021 using Bobrick Model No. 3944-130.
The integrated waste container is made from rigid, leak-proof molded plastic with a 3.8-gallon (14.4-liter) capacity and can be easily removed for maintenance. A door-swing limiter helps prevent damage to nearby fixtures or walls, ensuring smooth operation in high-traffic environments.
Installation requires a recessed wall opening of 11-1/2" wide by 53-5/8" high (292 x 1362 mm) with a minimum depth of 3-3/4" (95 mm). Installers should avoid conflicts with existing pipes or conduits and use filler material, such as an aluminum channel, if the unit projects above a wainscot. The cabinet should be shimmed at specified points and fastened using #8 x 1-1/4" (4.2 x 32 mm) sheet-metal screws (not included).
Overall, the B-38034.MBLK delivers a sophisticated, durable, and efficient washroom solution with user-centered features and a contemporary matte black finish ideal for upscale commercial restrooms.
- Height: 1400mm
- Width: 330mm
- Projection: 106mm
- Material: 304 Stainless Steel
- Finish: Matt Black
- Built in TowelMate®
- 90° Return Towel Guide
- Rough Wall Opening: 1360H x 290W x 95D (mm)
- 14.4 Litre Waste Container
- 2 x Key Lockable
- Dispenses C-fold and Multi-fold Towels
- EAN/GTIN: 716954022424
| Product Code | B-38034.MBLK |
| Height: | 1400 |
| Width: | 330 |
| Projection: | 106 |
| Material | 304 Stainless Steel |
| Finish | Matt Black |
| Capacity | 600 C-fold or 800 multifold paper towels |
| Paper Type | C Fold or Multifold |
| GTIN/EAN | 716954022424 |
What is the Bobrick B-38034.MBLK?
The B-38034.MBLK is a recessed paper towel dispenser and waste receptacle from Bobrick's TrimLineSeries™, featuring a matte black powder-coated finish. It's designed for commercial washrooms, combining durability with a sleek, modern aesthetic.
What materials are used in its construction?
The unit is constructed from heavy-gauge, Type-304 stainless steel with all-welded construction. The door is made of 18-gauge (1.2 mm) stainless steel with 9/16" (14 mm) 90° return edges for enhanced rigidity.
What is the capacity of the paper towel dispenser?
The dispenser can hold up to 600 C-fold or 800 multifold paper towels without requiring any adjustments or adapters.
Does it include any features to reduce towel waste?
Yes, it includes Bobrick’s TowelMate® system, featuring a 90° return towel guide angle that prevents towels from spilling forward when the door is opened for maintenance.
What is the capacity of the waste receptacle?
The waste receptacle is a removable, leak-proof, rigid molded plastic container with a capacity of 3.8 gallons (14.4 liters).
What are the installation requirements?
Installation requires a framed recessed wall opening measuring 11-1/2" wide by 53-5/8" high (292 x 1362 mm) with a minimum depth of 3-3/4" (95 mm). Installers must ensure that no mechanical components such as pipes, vents, or conduits interfere with the installation zone.
Are there any special considerations if the unit extends above a wainscot?
Yes, if the unit extends above a wainscot, a filler material—such as an aluminum channel—should be used to close the gap between the flange and the wall surface.
How is the door secured?
The door is secured to the cabinet with a concealed, full-length stainless steel piano hinge and is equipped with a stainless steel cable door-swing limiter and two flush-mounted tumbler locks, keyed to match other Bobrick washroom accessories.
Is the unit ADA compliant?
Yes, the design complies with ADA standards when installed properly.
| SKU | B-38034.MBLK |
|---|---|
| GTIN | 716954022424 |
| Warranty | 2 Years |
| Quick Code | 8184 |
| Manufacturer | Bobrick |
| Delivery | 2-3 Working Days |
