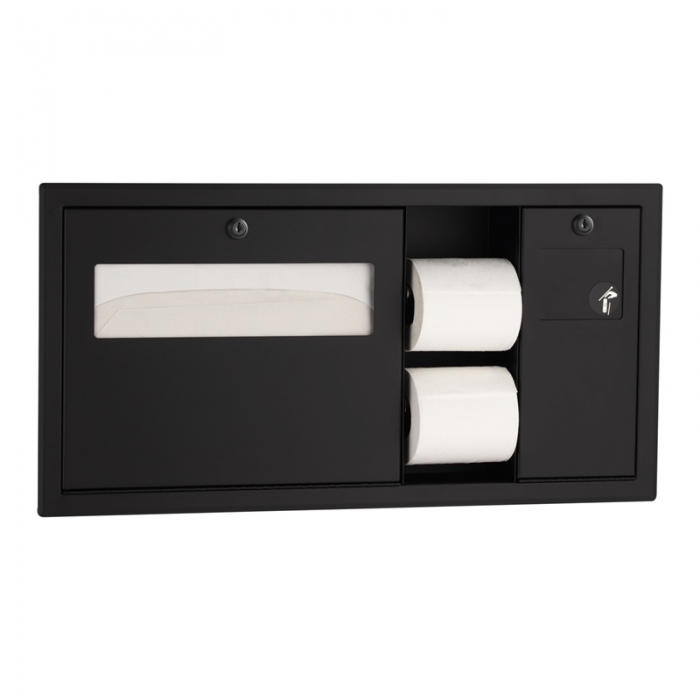

Bobrick R/H Matt Black Recessed Toilet Tissue, Seat Cover and Waste Disposal
- Material: Type 304 Stainless Steel
- Matt Black Finish
- Right Side of Toilet While Seated
- Holds 500 Toilet Seat Covers
Bobrick Matt Black Recessed Toilet Tissue, Seat Cover and Waste Disposal R/H
The Bobrick recessed combination unit is a versatile and durable fixture engineered for high-traffic commercial restrooms. Constructed from premium 18-8, Type-304 heavy-gauge stainless steel with all-welded seams, this unit is designed for long-lasting performance and structural integrity. It is available in both satin and matt black finishes, offering a sleek, seamless look that complements modern restroom aesthetics.
The unit features a bevelled, one-piece flange crafted from 22-gauge stainless steel, designed to mount flush with the wall surface for a clean, built-in appearance. Two seamless 18-gauge stainless steel doors are attached with full-length stainless steel piano hinges and secured by a keyed tumbler lock compatible with other Bobrick washroom accessories.
Inside, the unit includes two integrated toilet tissue dispensers, each constructed from 22-gauge stainless steel. These dispensers hold standard-core tissue rolls up to 5-1/4" (135mm) in diameter - about 1,800 sheets - and use chrome-plated plastic spindles with heavy-duty internal springs for reliable operation.
The waste disposal section features a 22-gauge stainless steel panel with hemmed edges for user safety, and a spring-loaded piano hinge for smooth, consistent access. A clearly marked “drop here” graphic directs users to the disposal area. The 0.5-gallon (1.9-litre) internal waste receptacle is made from leak-proof, moulded polyethylene and is fully removable for easy maintenance.
Additionally, the unit includes a toilet seat-cover dispenser with a capacity of up to 500 single- or half-fold paper covers.
Installation Requirements:

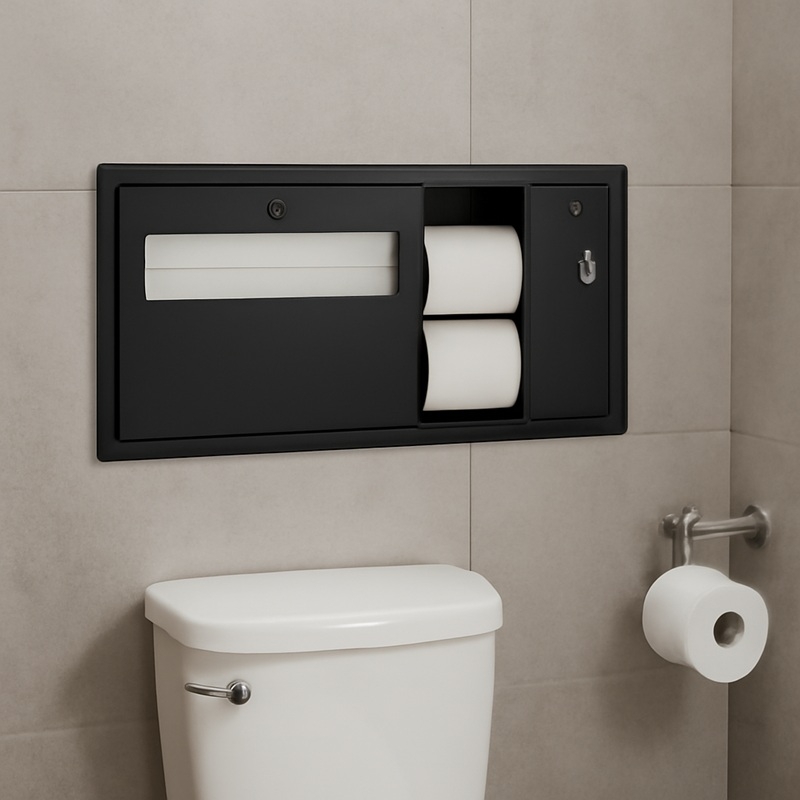

A framed rough wall opening of 26-5/8" (675mm) wide by 12-5/8" (320mm) high with a minimum recess depth of 4" (102mm) is required. Installers must coordinate placement with plumbing and electrical systems to avoid conflicts. When mounted above a wainscot, a filler - such as an aluminum channel - may be used to close any gap between the flange and the wall surface. Secure installation is achieved using shims and #8 x 1-1/4" (4.2 x 30mm) sheet-metal screws at the designated mounting points.
- Material: Type 304 Stainless Steel
- Matt Black Finish
- Right Side of Toilet While Seated
- Holds 500 Toilet Seat Covers
- Self Closing Disposal Panel
- Removable Waste Disposal Unit
- Waste Capacity: 1.9L
- Duo Toilet Roll Dispenser
- Secure Access: Tumbler Key Lockable
- ADA Compliant
- Seamless One Piece Flange
- Rough Wall Opening: H320mm x W675mm x D102mm
- GTIN/EAN: 0716954023797
| Product Code | B3092.MBLK |
| Material | Type 304 Stainless Steel |
| Finish | Matt Black |
| Cabinet Gauge | Heavy Gauge Stainless Steel |
| Flange | 22-Gauge (0.8mm), One-Piece Seamless |
| Doors (2) | Seamless, Piano Hinged and Tumbler Locked |
| Toilet Roll Dispensers (2) | Chrome Plated Plastic Spindles with Internal Springs |
| Toilet Roll Capacity | 2 Standard Rolls 135mm Diameter Approx. |
| Seat Cover Capacity | Holds 500 Single Covers |
| Waste Receptacle | Leak Proof Moulded Polyethylene, Removable |
| Waste Receptacle Capacity | 1.9L |
| Rough Wall Opening (mm) | H320mm x W675mm |
| Recessed Depth (mm) | 102mm |
| Compliance | ADA Compliant |
| Installation Orientation | Mounts on Right Side of Toilet |
| GTIN/EAN | 0716954023797 |
Is the waste receptacle removable?
Yes, the moulded polyethylene waste bin is leak-proof and removable for easy servicing.
What materials is the B-3092.MBLK made from?
The unit is made from high-quality Type 304 stainless steel with a matt black powder-coated finish. It features all-welded construction for enhanced durability in commercial environments.
What is the capacity of the toilet seat-cover dispenser?
It holds up to 500 single-fold or half-fold paper toilet seat covers.
How is the unit installed?
It is recessed into the wall. Installation requires a framed rough wall opening of 26-5/8" wide by 12-5/8" high with a minimum depth of 4" (102mm).
Is the disposal panel self-closing?
Yes, the disposal panel is spring-loaded and self-closing for hygiene and user convenience.
How many toilet paper rolls does it hold?
The unit includes two dispensers, each holding a standard-core roll up to 5-1/4" (135mm) in diameter (approximately 1,800 sheets).
| SKU | B3092.MBLK |
|---|---|
| GTIN | 0716954023797 |
| Weight | 3.000000 |
| Warranty | 2 Years |
| Quick Code | 8189 |
| Manufacturer | Bobrick |
| Delivery | 1-2 Working Days |
