Sugatsune Heavy Duty Concealed Hinge - Black Nickel (5/8" Overlay)
Quick Code: # 7726
£16.80 £14.00
SKU
J95-24/16T-BN
In stock
Warranty :
1 Year
Delivery :
1-2 Working Days
- Clip on for easy Installation
- Heavy Duty Concealed Hinge
- Reduces Installation time and Cost
Sugatsune Heavy Duty Concealed Hinge - 5/8" Overlay

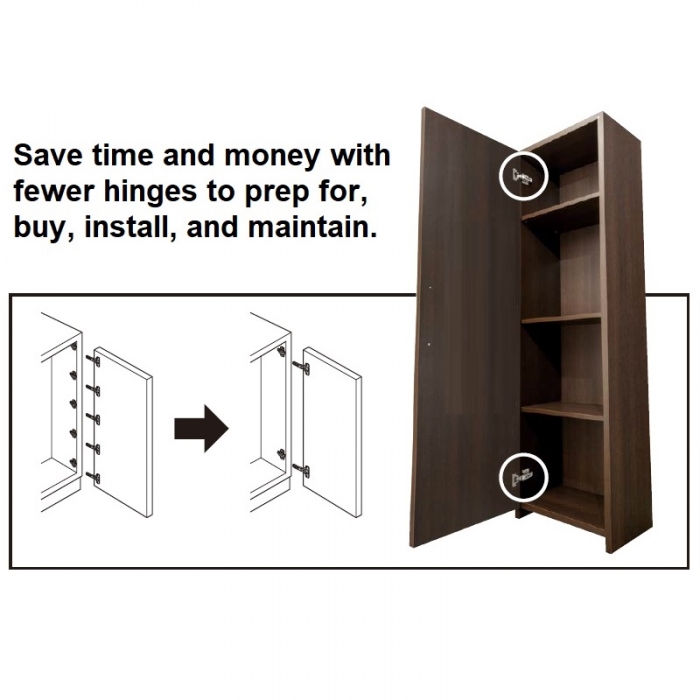

The Sugatsune heavy duty concealed hinge is designed to eliminate the need for the use of 5 or more standard hinges in cabinets and other furniture.
This will then reduce the cost and also the installation time, providing a much better look.
They easily clip on for easy installation and once installed have a 3 way adjustability. They are ideal for wide and heavy items including large cabinets, display cases or enclosures.
Two hinges can hold up to 55lbs (25kg) with 3 hinges being able to hold a weight of 88lbs (40kg).
They can be used on both wood or glass panels and come in a choice of either nickel or black nickel.
- Clip on for easy Installation
- Heavy Duty Concealed Hinge
- Reduces Installation time and Cost
- Ideal for Wide or Heavy Items
- 3 Way Adjustability
- Finishes include Nickel or Black Nickel
| Product Code | J95-24/16T-BN |
| Type | Free Swing |
| Weight (g) | 131 |
| Clip On | Yes |
| Cup Bore Diameter (mm) | 40 |
| Load Capacity (Kg/3 Hinges) | 88 |
| Load Capacity (Kg/2 Hinges) | 25 |
| Max Door Thickness (mm) | 34 |
| Max Opening Angle (Degrees) | 95 |
| Min. Door Thickness (mm) | 18 |
| Overlay (mm) | 16 |
| Self Closing | No |
| SKU | J95-24/16T-BN |
|---|---|
| GTIN | 4510932184755 |
| Weight | 0.100000 |
| Warranty | 1 Year |
| Quick Code | 7726 |
| Manufacturer | Prestige |
| Delivery | 1-2 Working Days |
