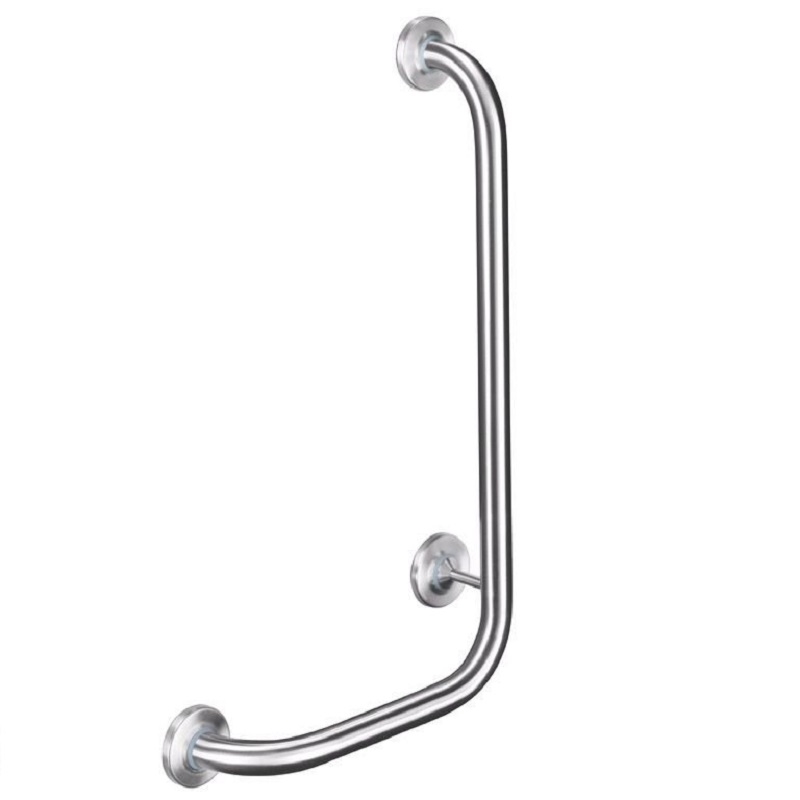

Prestige Left Hand Angled Grab Rail 650mm x 350mm - Satin Stainless Steel
- Left Hand Grab Rail
- Finish: Satin Stainless Steel
- Dimensions: 650mm x 350mm
- DWG & PDF CADS Available in Downloads
Prestige Left Hand Angled Grab Rail 650mm x 350mm - Satin Finish
Premium Support. Certified Safety. Sleek Design.
The Prestige Left Hand angled grab rail is engineered for safety, durability, and style in high-traffic or hygienically sensitive environments. Designed with a 90° left-hand angle, it offers secure, ergonomic support in bathrooms, healthcare facilities, or any space requiring enhanced accessibility.
Crafted from robust, germ-reducing stainless steel (AISI 304) with a Satin finish, this grab rail features a comfortable 32mm outer diameter and a 106mm clearance from the wall—perfect for a secure and natural grip. The bend radius of 75mm ensures smooth, user-friendly transitions.
- Dimensions: 650mm x 350mm
- Stainless Steel (AISI 304) – corrosion-resistant, hygienic, and easy to clean.
- Satin finish for a modern, understated appearance.
- Load capacity up to 125kg – ideal for everyday safety and support.
- Wall mountings with 8-point plate – freely rotatable, 4mm thick.
- Concealed, anti-theft fixings – 75mm diameter with silicone sealing ring at tube joint.
- TÜV-certified according to DIN EN 12182.
- CE-marked in compliance with Medical Device Directive 93/42/EEC.
- Installation with 9 screws – fixing materials included for easy mounting.
- GTIN: 4250674811051
Whether for public restrooms, private homes, or care facilities, this Grab Rail is a trusted solution for safe and stylish accessibility.
| Product Code | BF620 100 |
| Product Type | Angled Grab Rail 90°, Left Version |
| Material | Stainless Steel (AISI 304) |
| Finish | Satin |

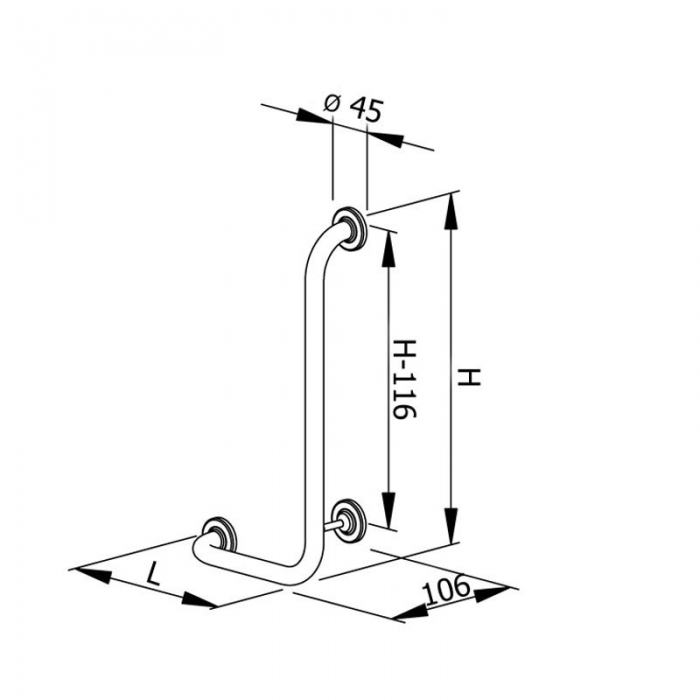

| Dimensions | 650mm x 350mm |
| Outer Tube Diameter | 32mm |
| Wall Clearance | 106mm |
| Bend Radius | 75mm |
| Mounting Method | 8-point mounting plate, freely rotatable |
| Sealing Disc | 2K-wall sealing disc, 4mm thick |
| Fixings | Concealed, anti-theft, 75mm diameter with silicone sealing ring |
| Load Capacity | Up to 125kg |
| Certifications | TÜV-certified (DIN EN 12182), CE-marked (93/42/EEC) |
| Installation | 9 screws (fixing material included) |
| GTIN/EAN Number | 4250674811051 |
Is the BF620 100 suitable for use in wet environments such as showers?
Yes, the grab rail is made from corrosion-resistant stainless steel (AISI 304) with a satin finish, making it ideal for humid or wet environments like showers and bathrooms.
Can the grab rail be installed on any type of wall?
The rail includes high-quality fixing material and mounts using 9 screws with a 8-point mounting plate. However, for optimal safety, it should be installed on a solid wall (e.g., concrete or reinforced backing). Always consult a professional installer for suitability on other wall types like drywall or tiled surfaces.
| SKU | BF620 100 |
|---|---|
| Quick Code | 3008 |
| GTIN | 4250674811051 |
| Weight | 1.000000 |
| Warranty | 2 Years |
| Manufacturer | Prestige |
| Delivery | 3-4 Weeks |
