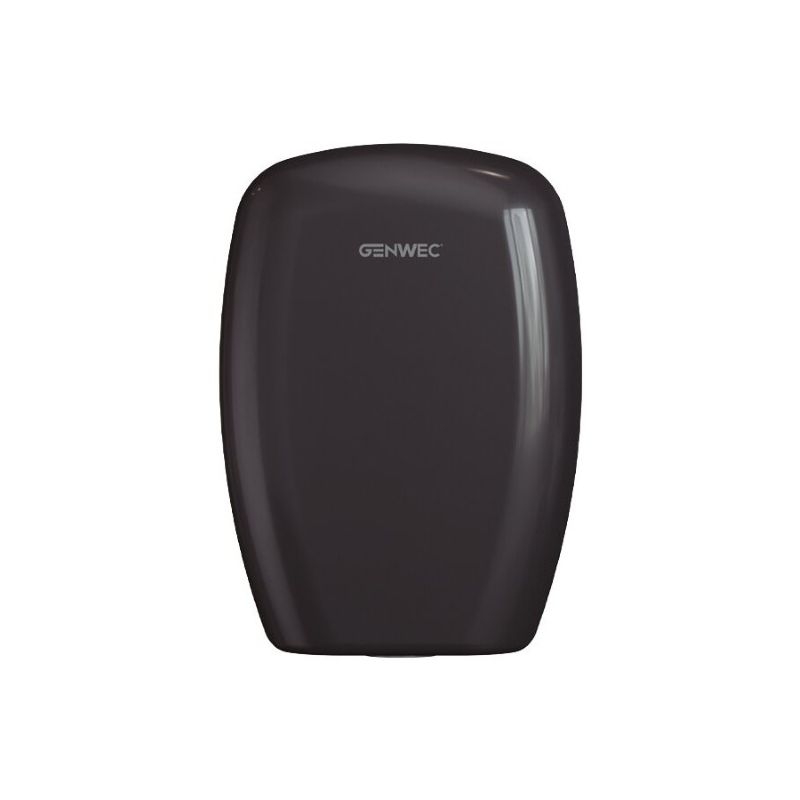

The Genwec Neo Automatic Hand Dryer is a sleek, compact, and high-efficiency solution built for modern washrooms, offering a combination of advanced performance, hygienic operation, and contemporary design. Featuring a 3.0 mm thick ABS thermoplastic matte black cover, the unit balances durability with visual appeal. It is secured using tamper-proof screws to a robust ABS base plate, mounted at three wall-fixing points for enhanced stability and resistance to vandalism.

Internally, the dryer is powered by a high-pressure universal brush motor operating at 28,000 RPM (220–240V, Class F), safeguarded by a thermal cut-out. This motor works in conjunction with a dual-plate Nickel-Chromium (NiCr) heating element supported by mica and protected by dual thermal limiters for added safety. The integrated smart electronic control system ensures minimal standby energy usage (<0.5W), while a fully adjustable infrared sensor enables automatic, touch-free operation when hands are detected within a 6–15 cm range. The unit dries hands in just 20 seconds with a powerful, even airflow, and automatically shuts off after 30 seconds if a stationary object obstructs the sensor, resuming normal operation once cleared.

For optimal hygiene, the Neo dryer includes a HEPA H13 filter positioned at the motor inlet, capable of removing 99.95% of airborne particles as small as 0.3 microns. Its slim profile meets ADA compliance standards, and an IP24 water resistance rating provides added protection in damp environments. Operating at an airspeed of 250 km/h and a temperature of 48°C, the dryer runs at a moderate noise level of 75 dBA (measured at 2 metres), drawing only 3.48 amps with a total input power of 800W (400W motor + 400W), designed for reliability and easy maintenance.

Dimensions (mm): H282mm x W190mm x D100mm
Drying Time: 20 Seconds
Noise Level @ 2m: 75 dBA
RPM: 28,000
Disconnection Time: 30 Seconds
Consumption: 3,48A
Total Power: 800W
Heating Element Power: 400W
Motor Power: 400W
Electrical Insulation: Class Ⅱ
Voltage: 220-240V
Frequency: 50-60Hz
IP Rating: IP24
Air Speed: 250km/h
Air Temperature: 48℃
GTIN/EAN: 8433989614647

Technical

Product Code	GW01170103
Finish	Matt Black ABS
Dimensions (mm)	H282mm x W190mm x P100mm
Voltage	220-240V
Frequency	50-60Hz
Air Speed	250km/h
Hepa Filter	Yes
Air Temperature	48ºC
Total Power	800W
Heating Element Power	400W
Motor Power	400W
Consumption	3.48 A
Electrical Insulation	Class Ⅱ
IP Rating	IP24
Drying Time	20 Seconds
Noise Level @ 2m	75 dBA
R/Min	28,000
Vandal Proof Disconnection	30 Seconds
Weight	2.8kg
GTIN/EAN	8433989614654

FAQs

What is the power rating of the Genwec Neo Black ABS Hand Dryer?

The Genwec Neo Hand Dryer has a power rating of 800 watts, making it energy-efficient while providing effective hand drying performance.

What is the noise level during operation?

The Genwec Neo Hand Dryer operates at a noise level of 75dBA, providing a relatively quiet drying experience compared to other hand dryers in its class.

What material is the casing made from?

The casing is constructed from durable white ABS thermoplastic, known for its strength and resistance to impact, ensuring longevity in high-traffic areas.

What are the dimensions and weight of the unit?

The Genwec Neo Hand Dryer measures 190mm in width, 100mm in depth, and 282mm in height, with a weight of 2.8 kg, making it compact and suitable for various restroom sizes.
