Dolphin Square Panel Mounted Infrared Tap 6ltrs Minute
Quick Code: # 3335
As low as £432.00 £360.00
SKU
DB1500/DB1525
In stock
Warranty :
2 Years
Delivery :
2-4 Weeks
- Flow rate – 6 litres/minute - 4 litres/ minute also available
- Power Source: Plug-in 9 Volt Transformers or 9 Volt Battery pack
- Self-adjusting sensor or adjustable using remote control DB51

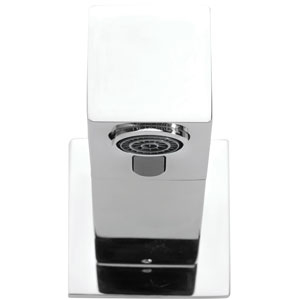

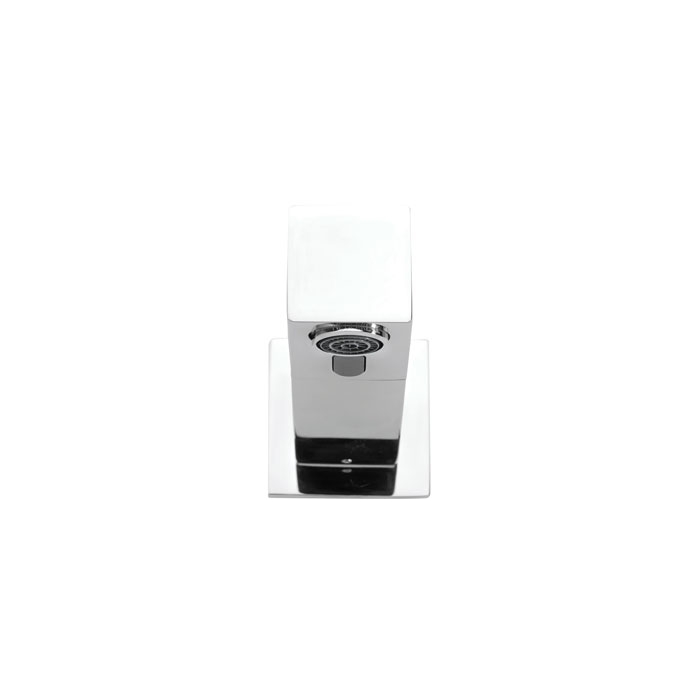

Dolphin Square Panel Mounted Infrared Tap 6ltrs Minute
Quality solid brass infrared tap with options for two durable finishes in Polished Chrome or Brushed Nickel.
Modern square touch free taps for ultimate hygiene to prevent cross contamination.
The water supply required for the DB1500 ranges are single inlet cold or pre-mixed. For mixed supplies a TMV2 or TMV3 thermostatic mixing valve is recommended.
The taps sensor range, tap settings including optional hygiene flush and security time can be easily adjusted manually or by using remote control (DB51)
- Flow rate – 6 litres/minute - 4 litres/ minute also available
- Power Source: Plug-in 9 Volt Transformers or 9 Volt Battery pack
- Self-adjusting sensor or adjustable using remote control DB51
- Auto adjusting sensor range 80-300 mm, pre-set @ 220mm
- Maximum water inlet temperature 70ºC
- Min operating water pressure: 0.5 bar (14.5PSI)
- Max operating pressure: 8bar (116 PSI)

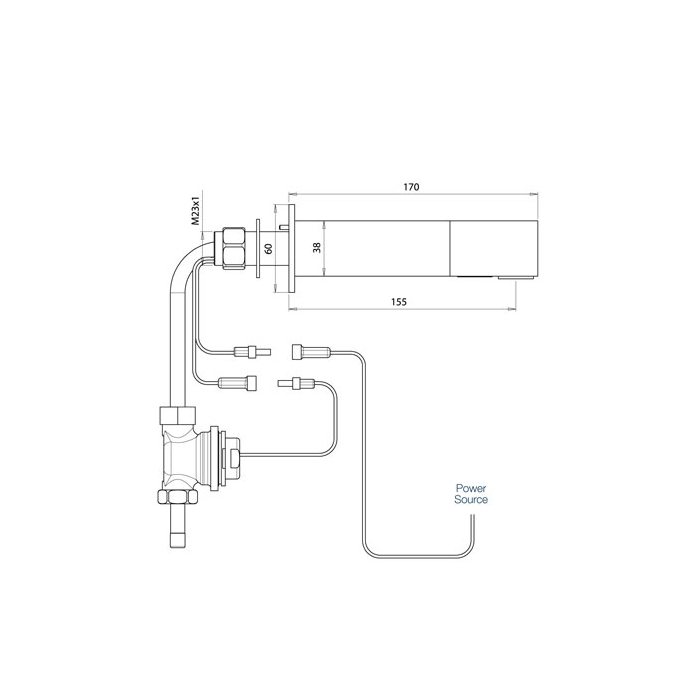

- Panel hole: 23-30mm, min-max panel thickness 10-30mm
- Minimum distance from wash basins >300mm
- Maximum projection 170mm – 155mm to spout
| Order Code | Description | Dimensions | Projection | Finish |
| DB1500C | 9 Volt Battery tap | 38 x 38mm | 170mm | Polished Chrome |
| DB1500S | 9 Volt Battery tap | 38 x 38mm | 170mm | Brushed Nickel |
| DB1525C | 9v Transformer tap | 38 x 38mm | 170mm | Polished Chrome |
| DB1525S | 9v Transformer tap | 38 x 38mm | 170mm | Brushed Nickel |
| SKU | DB1500/DB1525 |
|---|---|
| GTIN | No |
| Weight | 2.000000 |
| Warranty | 2 Years |
| Quick Code | 3335 |
| Manufacturer | Dolphin |
| Delivery | 2-4 Weeks |
