Dolphin Prestige Blue Panel Mounted Infrared Tap
Quick Code: # 3264
As low as £724.80 £604.00
SKU
DB1400
In stock
Warranty :
2 Years
Delivery :
2-3 Weeks
- Maximum water inlet temperature 70ºC
- Min operating water pressure: 0.5 bar (14.5PSI)
- Max operating pressure: 8bar (116 PSI)

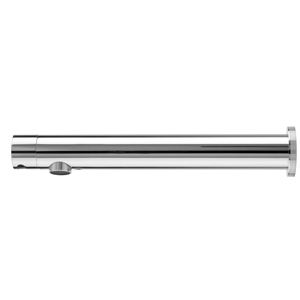

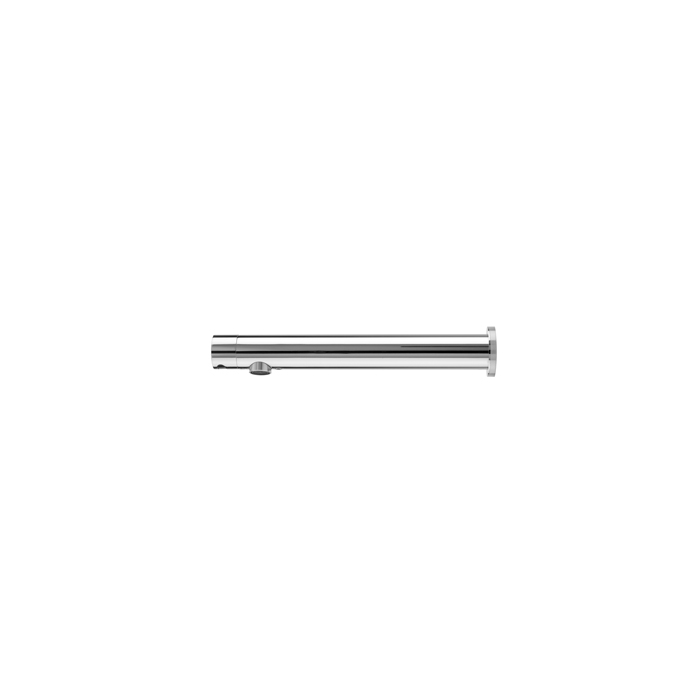

Dolphin Prestige Blue Panel Mounted Infrared Tap
Quality solid brass infrared tap with options for two durable finishes, polished Chrome or Brushed Nickel.
Designer touch free taps for ultimate hygiene to prevent cross contamination.
The water supply required for the DB1400 ranges are single inlet cold or pre-mixed.
For mixed supplies a TMV2 or TMV3 thermostatic mixing valve is recommended.
The taps sensor range, tap settings including optional hygiene flush and security time can be easily adjusted manually or by using remote control (DB51)
- Flow rate options from 1.89 to 5litres/minute - adjustable
- Power Source: Plug-in 9 Volt Transformers or 9 Volt Battery pack
- Self-adjusting sensor or adjustable using remote control DB51
- Auto adjusting sensor range 40-170 mm
- Maximum water inlet temperature 70ºC
- Min operating water pressure: 0.5 bar (14.5PSI)
- Max operating pressure: 8bar (116 PSI)

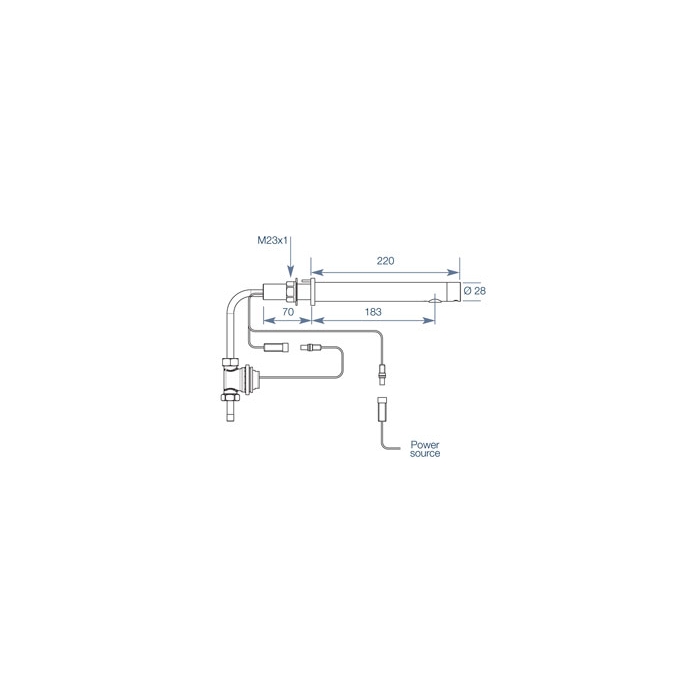

- Panel hole: 23 to 24mm, panel minimum-maximum thickness: 10-50mm
- Minimum distance from wash basins >300mm
- WRAS Approved tap
| Order Code | Description | Dimensions | Projection | Finish |
| DB1400C | 9 Volt Battery tap | Ø28mm | 220mm | Polished Chrome |
| DB1400S | 9 Volt Battery tap | Ø28mm | 220mm | Brushed Nickel |
| DB1425C | 9v Transformer tap | Ø28mm | 220mm | Polished Chrome |
| DB1425S | 9v Transformer tap | Ø28mm | 220mm | Brushed Nickel |
| SKU | DB1400 |
|---|---|
| GTIN | No |
| Weight | 1.000000 |
| Warranty | 2 Years |
| Quick Code | 3264 |
| Delivery | 2-3 Weeks |
