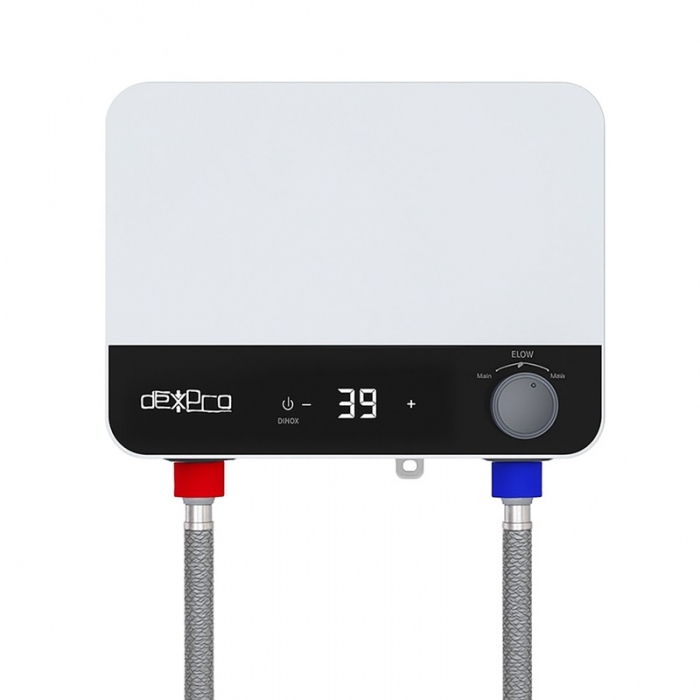

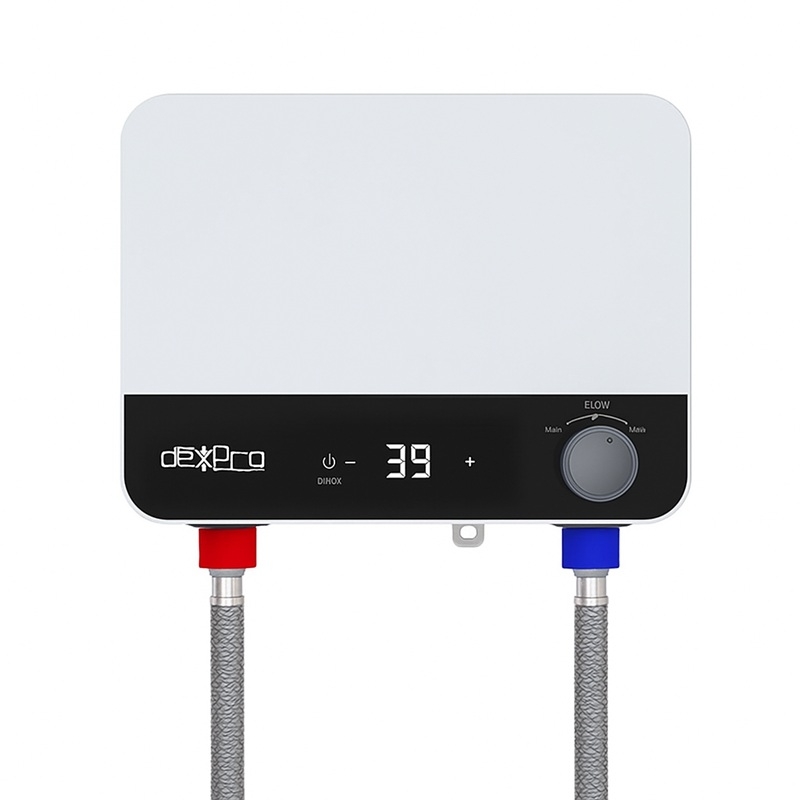

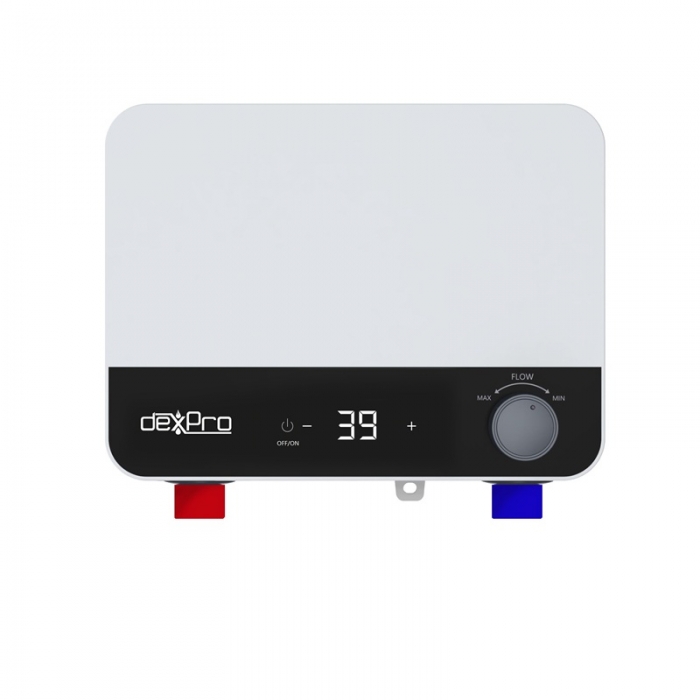

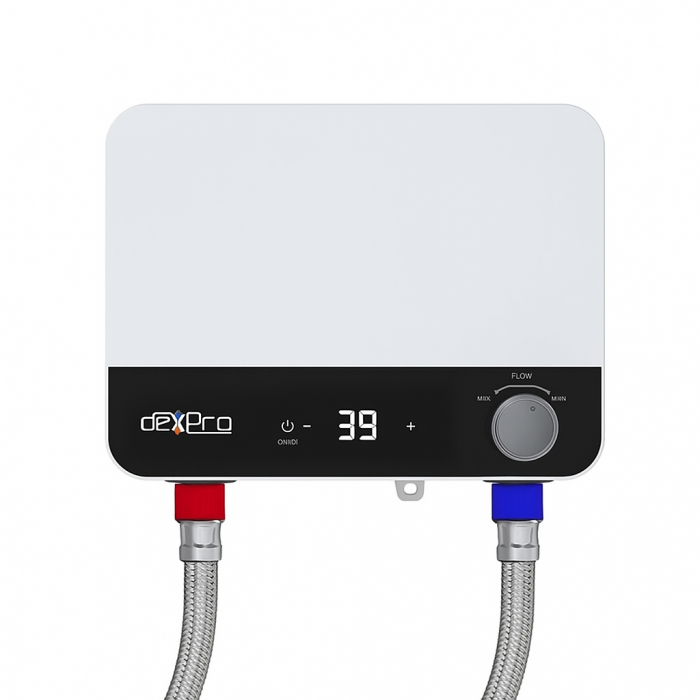

DeXpro Delux Digital Control Instant Electric Water Heater 7.5kW
- Power: 7.5kW
- Comes with Choice of Push Fit or Standard Fit Hoses
- Digital Temperature Display
- Dimensions (mm): H180mm x 220mm x P53mm
DeXpro Delux Instant Electric Water Heater 7.5kW - Digital Control
The DXI75DT Deluxe 7.5kW Instant Electric Water Heater is a high-performance, energy-efficient solution for delivering hot water instantly, ideal for modern households and commercial settings. Operating on 220V~ 50Hz and requiring a 40A circuit, this unit boasts a rated power of 7.5kW, a rapid heating time, and an impressive 92% heating efficiency.
Its durable cast aluminum heating element offers a lifespan of up to 8,000 hours, while a G1/2 connector type allows for straightforward installation. The heater is designed to work under a rated pressure of 0.6MPa and supports a temperature range of 30–55°C, which is easily managed via a digital display with user-friendly touch controls and adjustable power settings.
A thermal cutout rated at 95±5°C (250V, 45A), an overheating safeguard at 60°C, and a waterproof IPX4 rating provide strong safety features, making it suitable for bathroom use. Encased in a modern ABS and glass PVC panel with 1.5–2.5mm thickness, the unit offers a sleek, robust design. Its ignition flow rate of just 1.5L/min ensures quick activation.
However, water temperature output may vary seasonally due to fluctuations in incoming supply: for example, delivering up to 49°C in summer (15°C inlet) and around 44°C in winter (10°C inlet), with colder input potentially reducing output further. This variation should be considered when evaluating year-round performance and comfort.
- Dimensions (mm): H180mm x 220mm x P53mm
- Power: 7.5kW
- Comes with Choice of Push Fit or Standard Fit Hoses
- Recommended Amps: 40A
- Digital Temperature Display
- Adjustable Flow Control Temperature
- Recommended to Use With Spray Head Tap Nozzle (Included)
- Cable Pre-Wired
- Ignition Flow Rate: 1.5L/min
- Maximum Flow Rate: 1.4L/min
- IP Rating: IPX4
- Hot Water Temperature Limit: 30-55°
- Connection Type: ½” BSP
- Thermal Cutout Temperature: 95±5℃
- Over-Heating Temperature: 60℃
- Rated Pressure: 0.6MPa
- Heating Element Life-Time: 8000 Hours
- GTIN/EAN: 0741365123378
| Product Code | DXI75DT |
| Dimensions (mm) | H180mm x W220mm x D53mm |
| Power (kW) | 7.5kW |
| Recommended Amps | 40A |
| Voltage | 220V |
| Frequency | 50Hz |
| Rated Pressure | 0.6MPa |
| IP Rating | IPX4 |
| Hot Water Temperature Limit | 30-55°C |
| Temperature Display | Digital |
| Heating Element Material | Cast Iron |
| Heating Element Life-Time | 8000 Hours |
| Connection Type | ½” BSP |
| Thermal Cutout Temperature | 95±5℃ |
| Thermal Cutout Rated V&A | 250V~ 45A~ |
| Outer Body Material | ABS + Glass Panel |
| Outer Body Thickness | 1.5-2.5mm |
| Panel Material | PVC |
| Control | Touch Control |
| Ignition Flow Rate | 1.5L/min |
| Over-Heating Temperature | 60℃ |
| Heating Time | Instantaneous |
| GTIN/EAN | 0741365123378 |
| Product Code (Standard Fit Hoses) | DXI75DTSF |
| Product Code ( Push Fit Hoses) | DXI75DTPF |
Does the unit require a specific power supply?
Yes. It requires a dedicated 40 amp power supply and should be installed by a qualified electrician.
Is it suitable for showers and sinks?
The DXI75DT is ideal for single point-of-use applications like hand wash basins or sinks. It is not typically recommended for high-demand outlets like full-size showers unless in warmer climates with sufficient water pressure.
What type of controls does it have?
The unit features digital temperature controls and LED display for easy, accurate operation.
Can it be installed in any orientation?
No. It must be installed vertically and in accordance with the manufacturer's installation guidelines.
Does it work with low water pressure?
This model generally requires a minimum operating pressure of around 1.0 bar for optimal performance.
Does it come with safety features?
Yes. It includes built-in overheat protection, anti-scald function, and flow sensors for added safety.
What type of water heater is the DXI75DT DELUX?
It’s a 7.5kW instant electric water heater designed to provide hot water on demand without the need for a storage tank.
