Bobrick Matt Black 800ml Automatic Foam Soap Dispenser
- Dimensions (mm): H268mm x W108mm x D107mm
- Material: Type 304 Stainless Steel
- Capacity: 800ml
- Finish: Matt Black
Bobrick Matt Black Automatic Foam Soap Dispenser 800ml

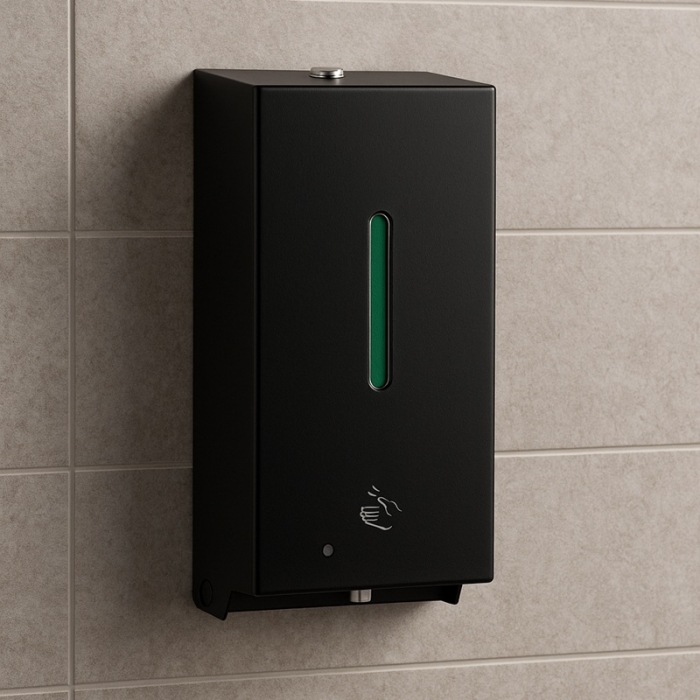

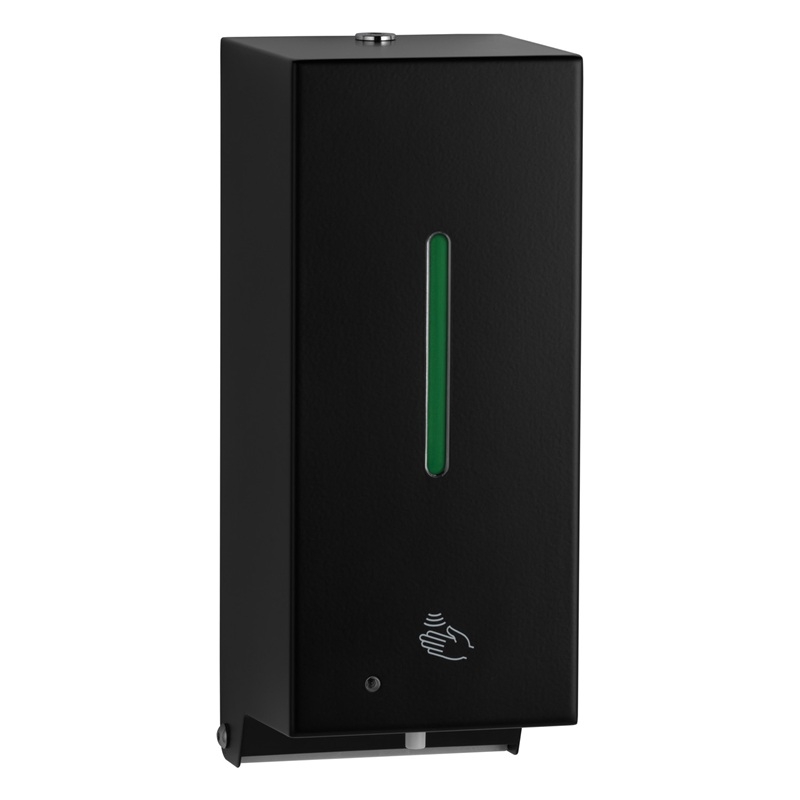

The Bobrick B-2013 is an automatic wall-mounted foam soap dispenser constructed from durable, welded Type-304, 18-gauge stainless steel with a matt black finish. Designed for efficient and hygienic operation, this dispenser features a no-touch, sensor-activated valve that is compatible with foam soap, concentrated foam soap, or cartridge-based foam soap solutions.
Its corrosion-resistant valve and refillable plastic container hold up to 800 ml (27 fl oz) of product. The housing includes a concealed mounting system, a clear acrylic window to monitor soap levels, and a key lock for secure refilling and maintenance. A plastic backplate provides both mounting screw holes and pre-applied mounting tape for flexible installation options.
Operable via a sensor with a factory-set range of 60 mm (2-1/2"), the unit dispenses soap when a hand is placed under the spout for approximately one second. A blue light indicates the unit is in use, while a flashing blue light alerts users to a low battery condition. The dispenser requires four 1.5V alkaline “AA” batteries (not included) and must be installed at least 200 mm (8") away from reflective or obstructive surfaces to ensure proper sensor functionality.
Mounting height should not exceed 48 inches above finished floor (AFF) to comply with ADA/ICC accessibility guidelines and 40 inches AFF for CBC standards. The housing must remain slightly untightened after filling to allow necessary airflow for dispensing. Additionally, the unit is CE certified.
- Dimensions (mm): H268mm x W108mm x D107mm
- Material: Type 304 Stainless Steel
- Capacity: 800ml
- Finish: Matt Black
- Batteries; 4 x AA Batteries - NOT INCLUDED
- For use Foam Soaps - See Related Products
- Indicator Lights: Blue - "In Use"
- Low Battery Indicator: Flashing Blue
- Key Lockable
- Refill Window Indicator
- Refillable Type: Plastic Container
- ADA Compliant: Yes
- Viscosity Range: 0 - 150 CPS
- GTIN/EAN:
| Product Code | B2013.MBLK |
| Capacity | 800ml |
| Material | Type 304 Stainless Steel |
| Finish | Matt Black |
| Height (mm) | 268mm |
| Width (mm) | 108mm |
| Depth (mm) | 107mm |
| Key Lockable | Yes |
| Suitable For | Foam Soap |
| Sensor Range Factory Setting | 60mm |
| Viscosity Range | 0 - 150 CPS |
| Battery Type | 4 x AA Batteries (Not Included) |
| Indicator Lights | Blue - "In Use" |
| Low Battery Indicator | Flashing Blue |
| Refillable Type | Plastic Container |
| ADA Compliant | Yes |
| GTIN/EAN |
What type of soap does the B-2013.MBLK dispenser support?
This dispenser is designed for foaming hand soap. It can also work with iodine-based and alcohol-based foam sanitisers, though foam quality may vary with sanitiser solutions.
Is this dispenser touch-free?
Yes, the B-2013.MBLK features a sensor-activated valve that allows for hygienic, no-touch operation.
What is the soap capacity of the unit?
It holds up to 800 ml (27 fl oz) of foaming soap.
Does the unit require batteries?
Yes, it requires four (4) AA alkaline batteries (1.5V), which are not included.
How do I know when the soap or battery is low?
The dispenser includes a clear acrylic refill indicator window. A blue LED light indicates normal use, and a flashing blue light signals a low battery.
Is the dispenser ADA compliant?
Yes, it is ADA compliant when installed properly. The operable sensor must be mounted no higher than 48" AFF (above finished floor) per ADA/ICC and 40" AFF per CBC.
What materials is it made from?
The housing is made of Type-304, 18-gauge stainless steel with a matte black finish, offering both durability and modern aesthetics.
How is the dispenser installed?
It is surface-mounted using either included screws or adhesive mounting tape. Ensure the dispenser is at least 8 inches away from reflective surfaces to avoid sensor interference.
| SKU | B2013.mblk |
|---|---|
| GTIN | No |
| Weight | 1.300000 |
| Warranty | 2 Years |
| Quick Code | 8177 |
| Manufacturer | Bobrick |
| Delivery | 6-8 Weeks |
