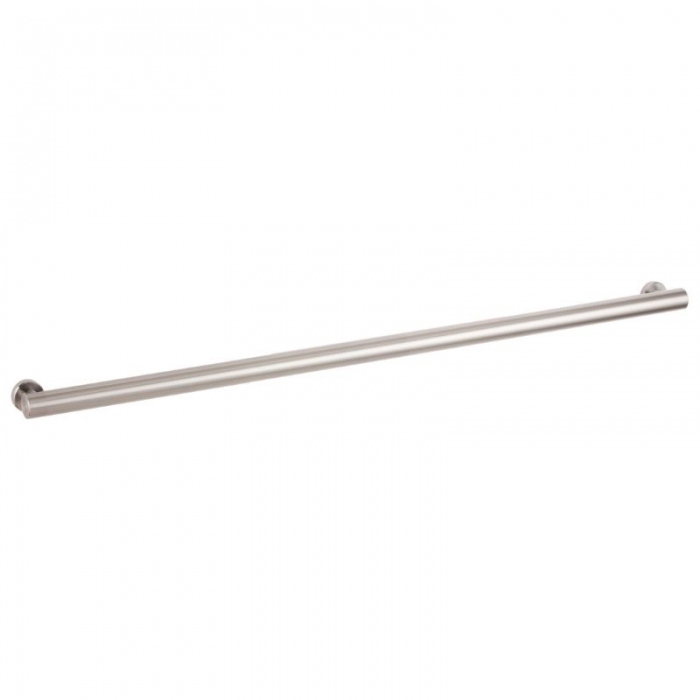

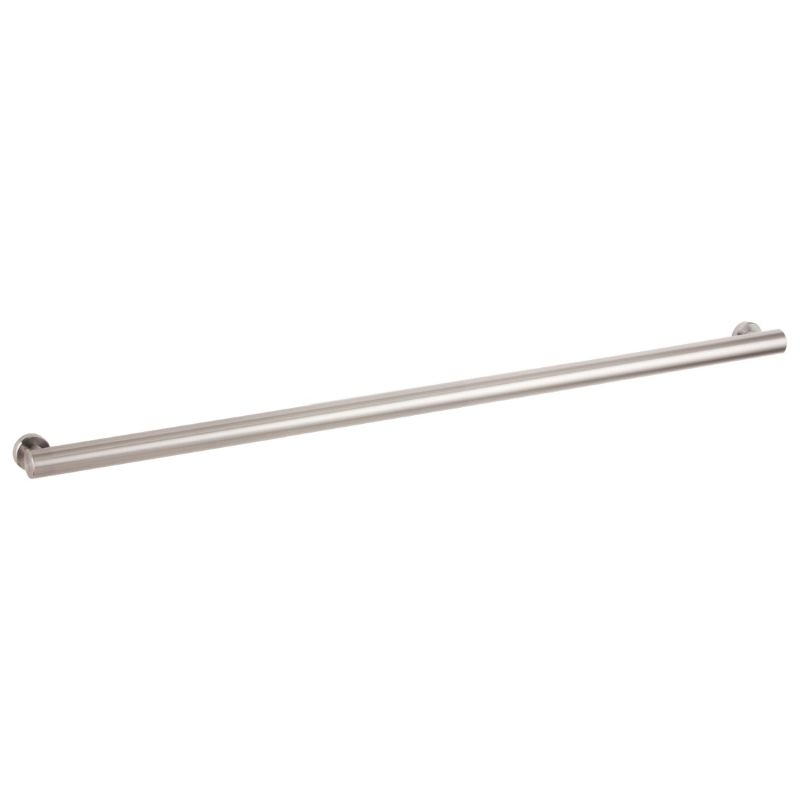

The Bobrick Fino Grab Bar is a premium straight grab bar from the minimalist Fino Collection, designed for upscale commercial restrooms and accessibility compliance. Its clean lines, concealed mounting system, and fine finishes deliver modern elegance without compromising on durability or performance. With a 38 mm (1½") diameter for optimal grip and heavy-duty construction, it supports up to 408 kg (900 lbs) when properly installed, meeting ADA and other accessibility codes.

Ideal for use in accessible toilet compartments, showers, and public or private facilities where both style and safety are essential.

Bar Diameter: 38mm (1½")
Finish: Satin Stainless Steel
Material: Type 303 Stainless Steel, 14-Gauge
Mounting: Concealed Flanges with Tamper-Resistant Screws
Wall Clearance: 57 mm (2¼")
Load Capacity: Up to 408 kg (900 lbs)
Compliance: ADA, ANSI, ICC/ANSI A117.1, DDA (UK)

Technical

Product Code	B-9807x36
Finish	Stainless Steel
Tube Diameter	38 mm (1½")
Material	Type 303 Stainless Steel, 14-Gauge (2 mm)
Wall Clearance	57 mm (2¼")
Mounting Flanges	Concealed, 50 mm (2") Diameter, 8 mm Thick
Flange Covers	50 mm (2") Diameter, 3 mm Thick
Pillar Connection	25 mm (1") Outer Diameter, 6 mm Wall Thickness
Load Capacity	Up to 408 kg (900 lbs)
Compliance	ADA (U.S.) and DDA (UK) Compliant
Installation	Concealed Mounting with Included Hardware

FAQs

Are these bars ADA compliant?

Yes. When installed at the correct height and position, both lengths comply with ADA, ICC/ANSI A117.1, and DDA standards.

Can these be installed on any wall type?

Yes, but proper reinforcement is required. For drywall, use the WingIts® fastener system or mount into wall blocking to achieve full load-bearing capacity.

Is the matte black finish as durable as stainless steel?

Yes. The matte black version uses a durable powder-coated finish over stainless steel, providing both aesthetics and corrosion resistance. Avoid abrasive cleaners to preserve its look.

Is this grab bar suitable for showers?

Absolutely. Made from corrosion-resistant stainless steel, it's ideal for wet environments such as showers and changing rooms.

Is it suitable for residential use?

While designed for commercial settings, its clean design and robust performance make it an excellent option for residential accessibility upgrades.
