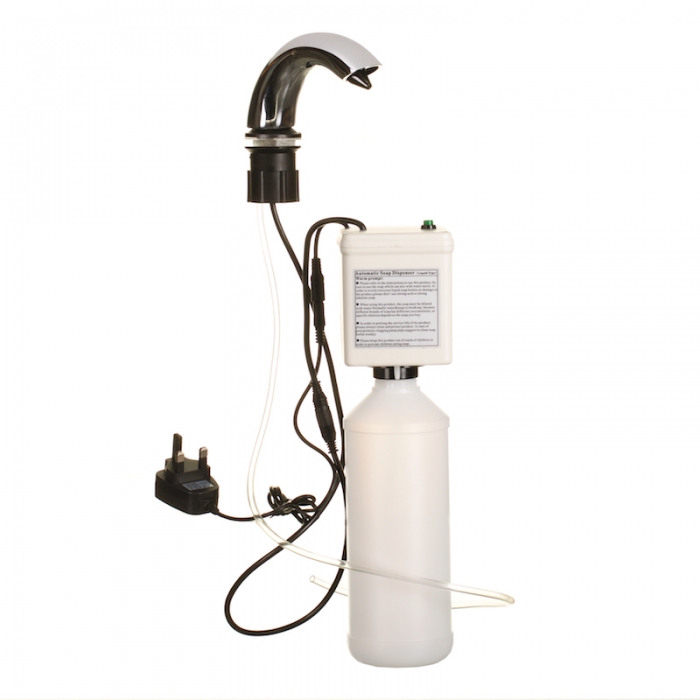

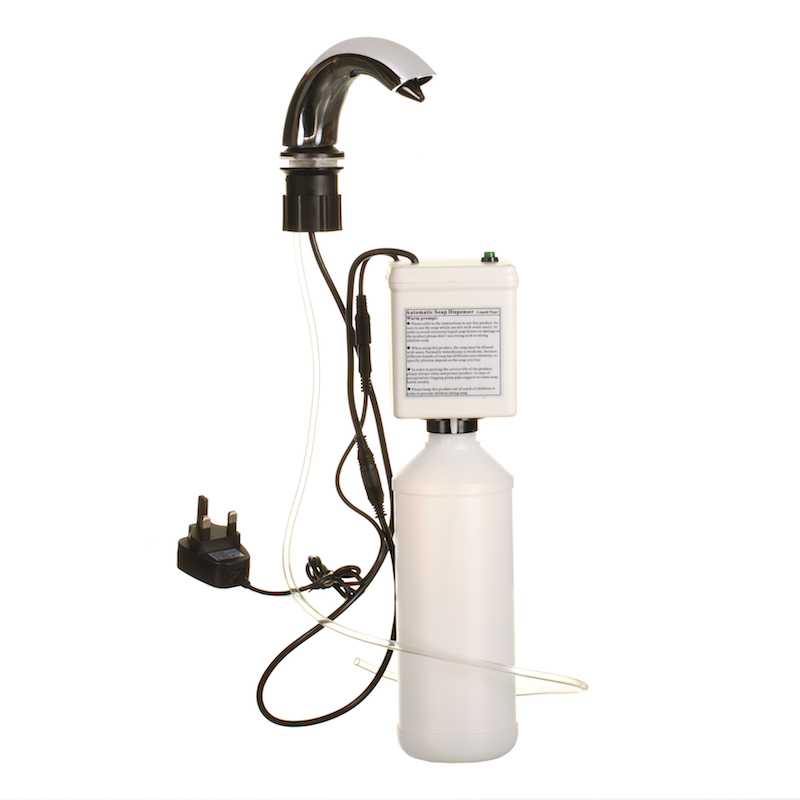

Prestige automatic soap dispenser compliments all kinds of faucets. Infrared activated completely touch-free for a hands free hygienic environment. This dispenser will only dispense soap when the hands are placed within range of the sensor, the hands must be removed to reset the sensor before it will dispense again. The spout is made of brass and plated with chrome for long service life. Very easy installation, supplied with 3 pin plug - transformer and fixing kit.

Supplied with 1.0 ltr soap container
Can be used with multi feed soap system
Polished chrome finish
Projection of spout 95 mm
Counter top maximum thickness 40 mm
Counter hole cut out: 25-35 mm
Ideal soap viscosity: 1~500mPa.S
Adjustable foam soap volume 0.5~25 ml (factory setting: 15±5 ml)
Standby power consumption: 0.4W (≤3W);
Power in operation: 1.2W (≤5W)
Power supply: AC110/240V ~DC 6V

Technical

SKU	PDH704
Power Supply	AC110/240 ~ DC 6V
Power Consumption - Standby	0.4W
Power Consumption - In Operation	1.2W
Mounting Method	Counter Mounted
Soap Volume	0.5~25 ml
Ideal soap viscosity	1~500 mPa.S
Capacity	1 Litre / Multi-Feed
Finish	Polished
Weight (g)	499
Height x Width(mm)	80 x 45
Depth	135
Spout Projection	95
