Prestige Behind Mirror Foam Soap Dispenser Chrome 1500ml
- To be fitted behind hinged mirror or panels
- Easy access to replenish foam soap supply
- Touch-free dispenser eliminating cross-contamination
- Refillable soap container no need to purchase unique soap reservoirs
Prestige Behind Mirror Foam Soap Dispenser Chrome 1500ml

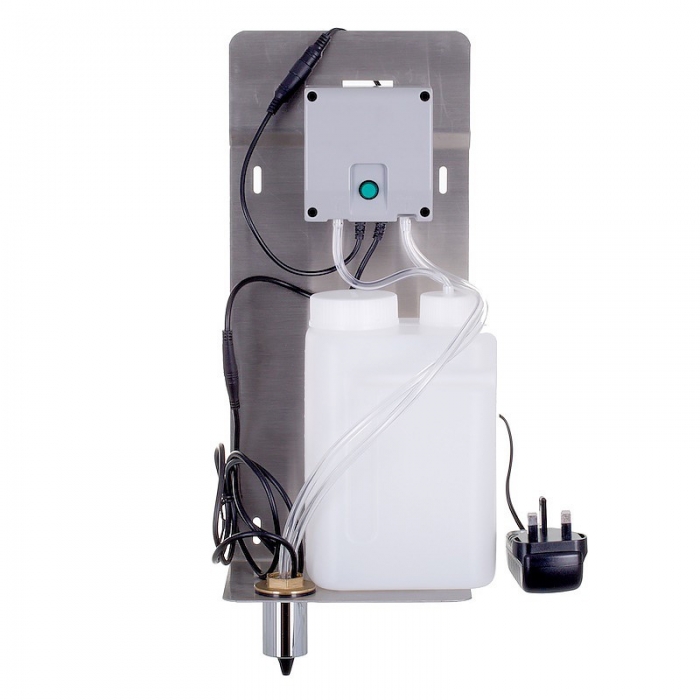

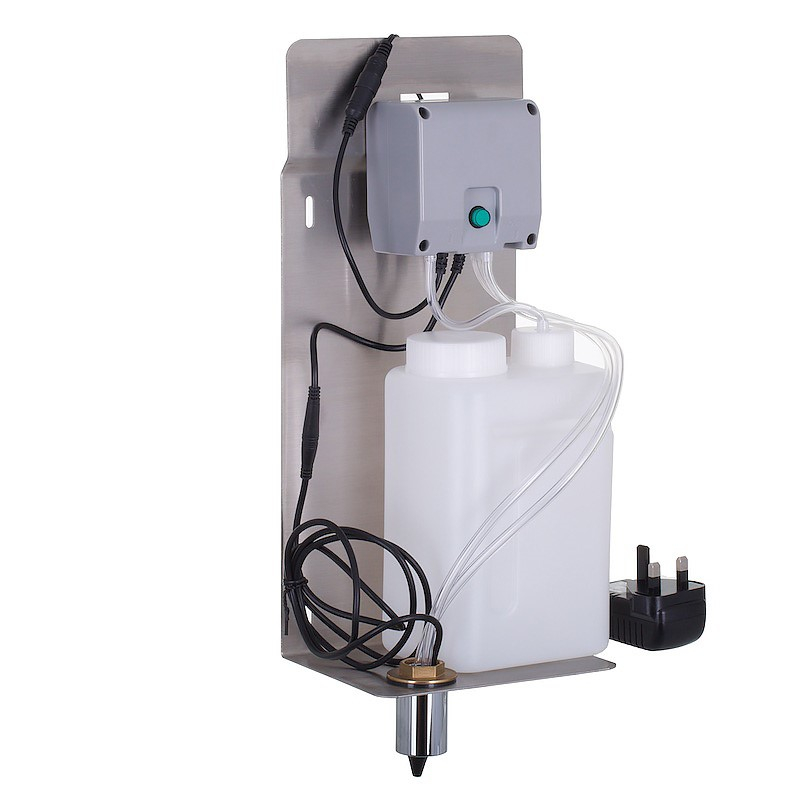

Easy Fix Auto Foam Soap Dispenser for behind the mirror with touch-free automatic operation eliminating cross-contamination for an exclusive designer washroom. Chrome plated soap nozzle, cleverly designed to protrude 58mm below the bottom edge of the mirror making it quick and easy to identify and use. Touchless operation, the automatic pump allows you to use foam soaps of different density. Infrared sensors set up at a range of 18 cm / 180 mm. This dispenser will dispense any foam soap
- Supplied with transformer 240V - 6V
- Modern and futuristic automatic soap dispenser
- Designed to ensure an uncluttered washroom appearance
- Battery pack available see related products
- To be fitted behind hinged mirror or panels - easy access to replenish soap supply
- Touch-free dispenser eliminating cross-contamination
- 1500 ml refillable soap container no need to purchase unique soap reservoirs - helps to prevent vandalism
| Product Code | DISH88 |
| Behind Mirror / Cupboard | Yes |
| Power Supply | 240V / 6V |
| Standby Power (W) | 0.4 |
| Motor Power (W) | 1.2 |
| Foam Soap | Yes |
| Bottle Capacity (ltrs) | 1500 |
| Cable Length (mm) | 850 |
| Sensor Range (mm) | 180 |
| Finish | Chrome / Stainless Steel |
| Weight (kg) | 2.5 |
| Height x Width x Depth (mm) | 360 x 160 x 120 |
| EAN | 5060819138092 |
Can this foam soap dispenser be battery operated?
Yes, the DISH88 is supplied standard with AC power supply and 3 pin plug! A Battery pack option is also available if power supplies are not available on site please see related products!
How do you re-fill the foam soap tank?

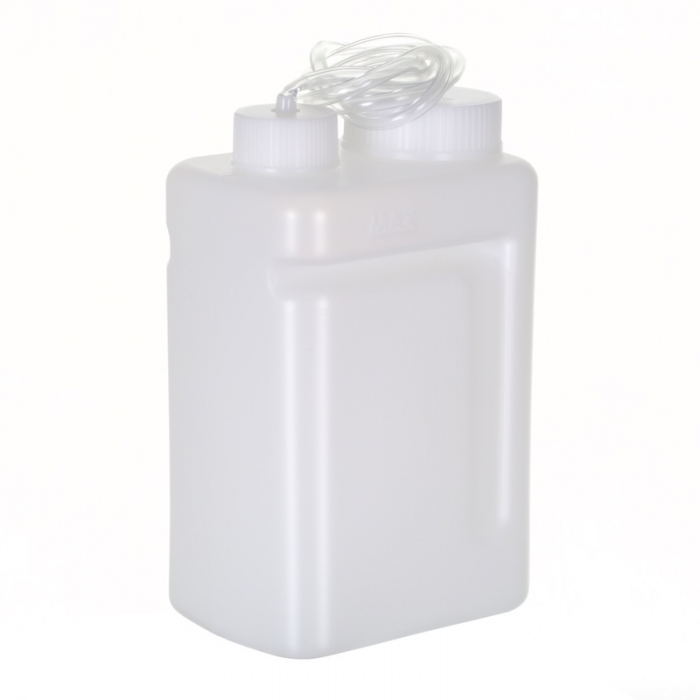

The 1500ml soap tank must be filled on the bracket so full access to the unit is required
How do you prime the foam soap dispenser?

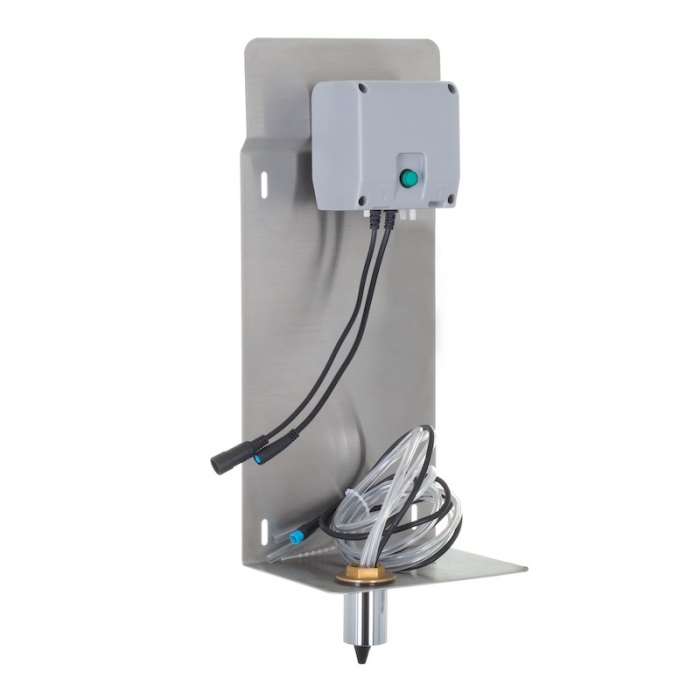

Once the foam soap tank is full, the foam tube can then be primed by pressing the green button on the front of the pump motor. Pressing the green button and holding down will manually start the motor and start to feed the foam soap through the tubing to the foam soap nozzle. Ensure the foam tubing has no air pockets within the tubing. Please note there are 2 x tubes one is for the air line and should never be primed with liquid.
Does this auto foam soap dispenser require maintenance?
Yes, all foam soap dispensers will need maintenance. It is recommended that the foam soap tank and foam tube is cleaned through with warm water on a monthly basis, or ideally every time it is refilled. This will help prolong the life of the motor pump.

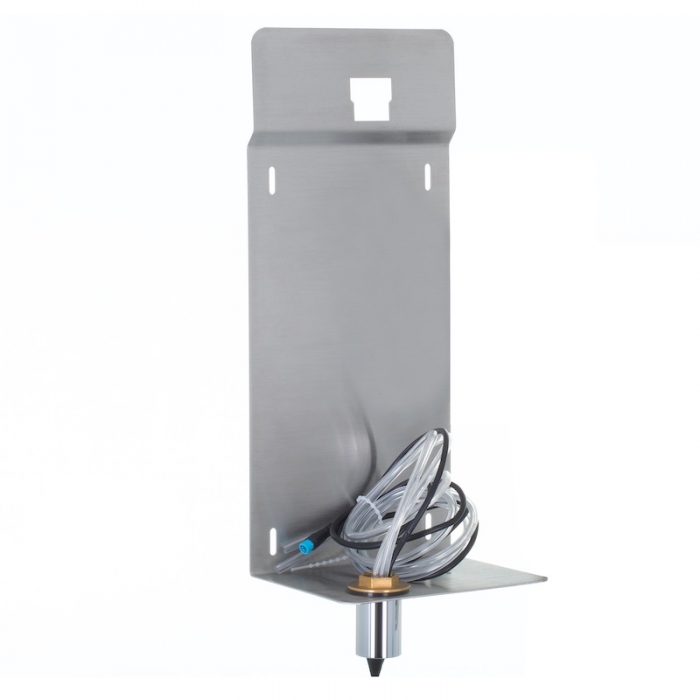

What is the maximum depth of the soap dispenser bracket?
The maximum depth is 120mm. From the backplate to nozzle is a distance of 95mm (See attached CAD drawings)
How far will the soap nozzle protrude at the bottom?
58mm
| SKU | DISH88 |
|---|---|
| GTIN | 5060819138092 |
| Weight | 2.000000 |
| Warranty | 2 Years Warranty |
| Quick Code | 7554 |
| Manufacturer | Prestige |
| Delivery | Next Working Day |
