Eldom Eco Undersink Water Heater 7ltr
- UK WRAS Approved - See Downloads
- The eldom eco is silent in operation 15dB
- ENERGY SAVING – with minimal heat losses
- LONG LIFE - innovative wear-proof zirconium enamel
- RELIABLE – with a reliable "6-level protection"
Eldom Eco Undersink Water Heater 7ltr

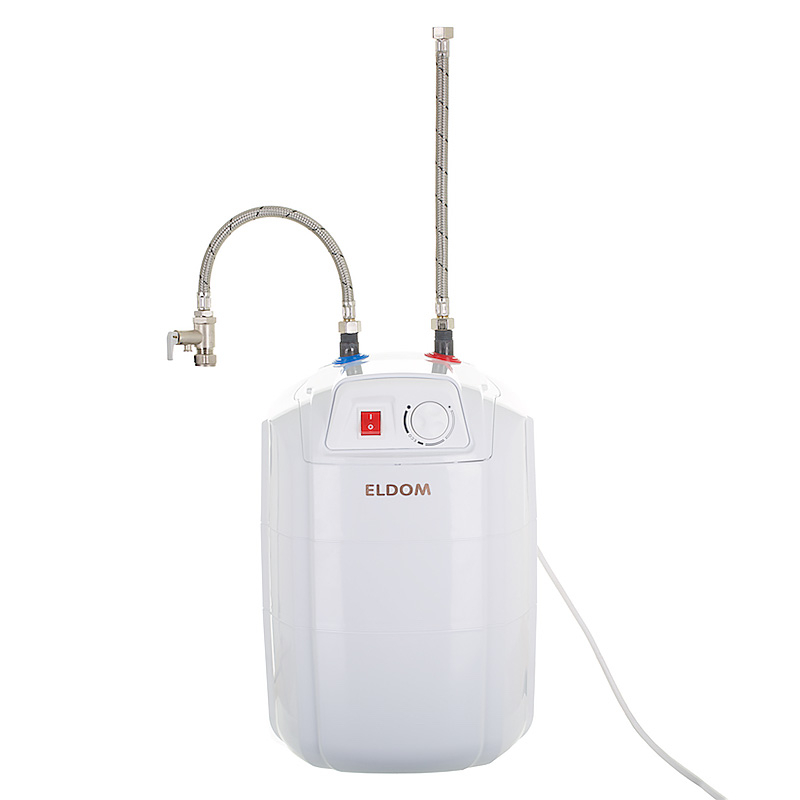

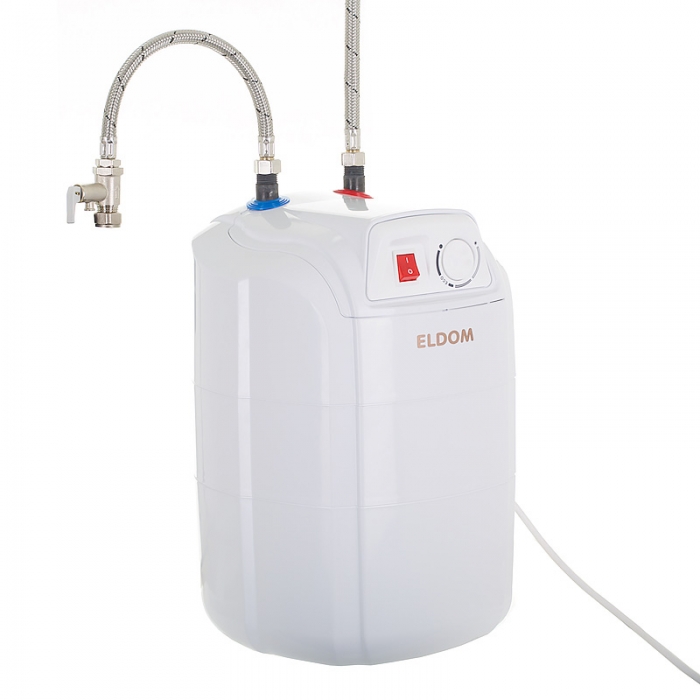

Eldom unvented water heater ideal for hard water areas and can be used with standard mixers or taps. Connects directly to the cold water mains supply using 15 mm pipe fitting supplied. The 7ltr will supply one small kitchen sink or 1 small hand wash basins. Selective thermostatic temperature control range from: 7C to 75C. The Eldom eco water heater is fully equipped and no additional accessories are required. Installation could not be easier supplied with either standard 1/2" BSP or 15mm push-fit flexi hose for direct connection to hot water or mixer tap.
- The eldom eco is silent in operation 15dB
- For installation below sink, under pressure, min 2 bar max 6 bar
- ENERGY SAVING – with minimal heat losses, tank coated with 30 mm of insulation, type penopolyurethan
- LONG LIFE - innovative formula of wear-proof zirconium enamel and anti-corrosion cathode protection
- RELIABLE – with a reliable "6-level protection"
- Extremely convenient for installation in kitchen
- Easy and quick installation – the device is fully equipped and no additional accessories or installation elements are needed
- Supplied with cold water drain off valve
- Wall fixing kit supplied
- Power cable length 850mm

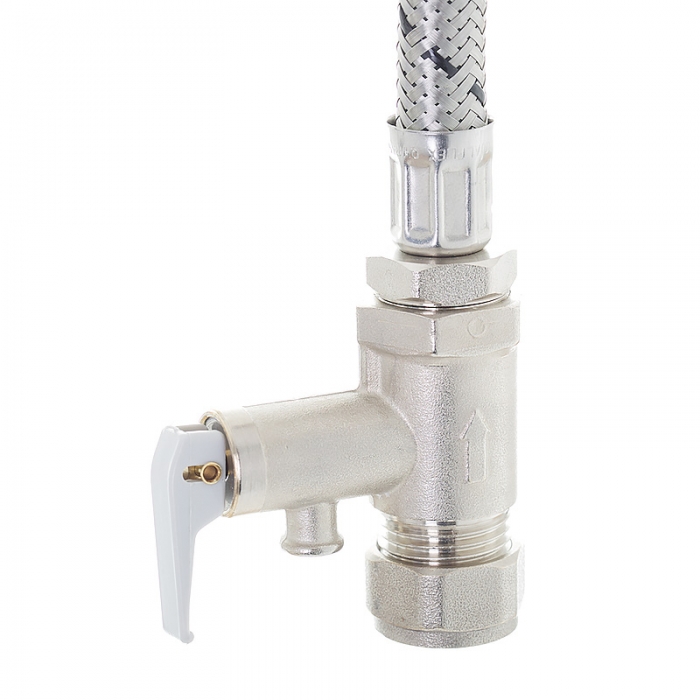

- Combined safety valve – acting as a balance, return and differential valve

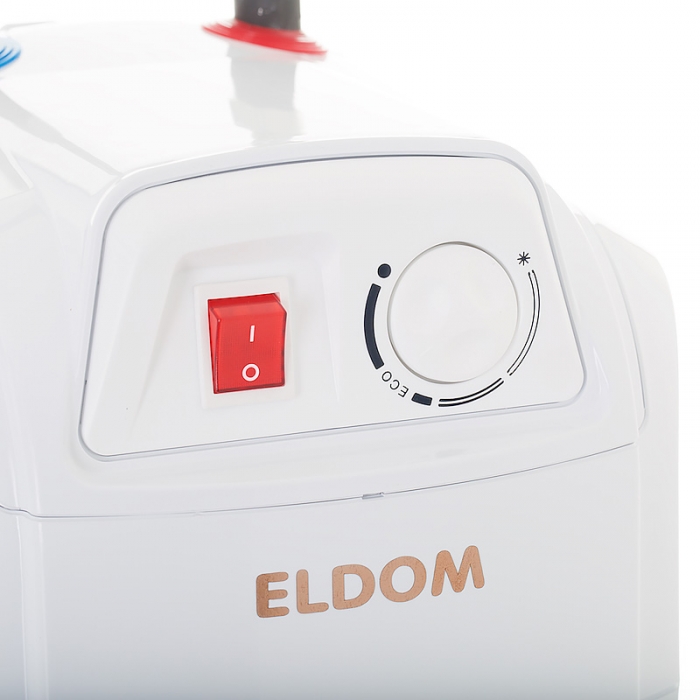

- External thermo-regulator - for setting the water heating temperature
- Illuminated switch
- Modern elegant design
- EAN: 3800035701494
- UK WRAS Approved: United Kingdom and Scottish Water Bylaws
| SKU | 72324PMP |
|---|---|
| Type | 7 ltr Undersink Water Heater |
| Power (kW) | 1.5 |
| Current Intensity (A) | 13 |
| Minimum Cable Size (mm) | 2.5 |
| Minimum Water Pressure (Bar) | 2.0 |
| Maximum Water Pressure (Bar) | 6.0 |
| Reheat Time (min) 10C - 75C | 22.69 |
| Working Noise Level (dB) * | 15 |
| Weight (kg) | 6.6 |
| Height / Width / Depth (mm) | 340 / 285 / 288 |
| EAN | 3800035701494 |
* Please note: Reheat times are calculated using minimum water inlet temperature of 10C
Do I need any accessories for installation?
Unvented water heaters can be plumbed straight into the cold water supply; and hot water supply straight to standard taps, however we would always recommend that it is installed with the 2ltr Expansion Vessel and Check Valve. The expansion vessel may be required if the cold supply pipe is not long enough to allow for the expansion of water when it is heated, your plumber will be able to advise you best if the expansion vessel is required!
Can this water heater be plugged in?
In the UK all Electric water heaters require a 240-volt dedicated circuit, which serves only the water heater and no other appliances or devices, this is a UK standard for the safe installation of electrical wiring and equipment!
What is the purpose of the reverse valve?
The reverse valve is primarily a safety valve in the event the boiler side becomes over presurised. It is also used to drain the the boiler side down during maintenance. The reverse valve drain can also be connected directly to external drain, this may be required if the expanded water cannot be accommodated in the pipework.
What power supply do i need?
The current intensity of the 7, 10 and 15ltr is 13A!
How many sinks will the 7ltr serve?
The 7ltr is suitable for one handwash basin or one small sink!
What is the reheat time?
Please see technical page!
Do you install the boilers?
Yes we install boilers please call: 01977 663 331
Is the water heater vented or unvented?
The water heater is vented.
