Hinged Grabrail With Toilet Roll Dispenser 600mm

Hinged Grabrail With Toilet Roll Dispenser 600mm

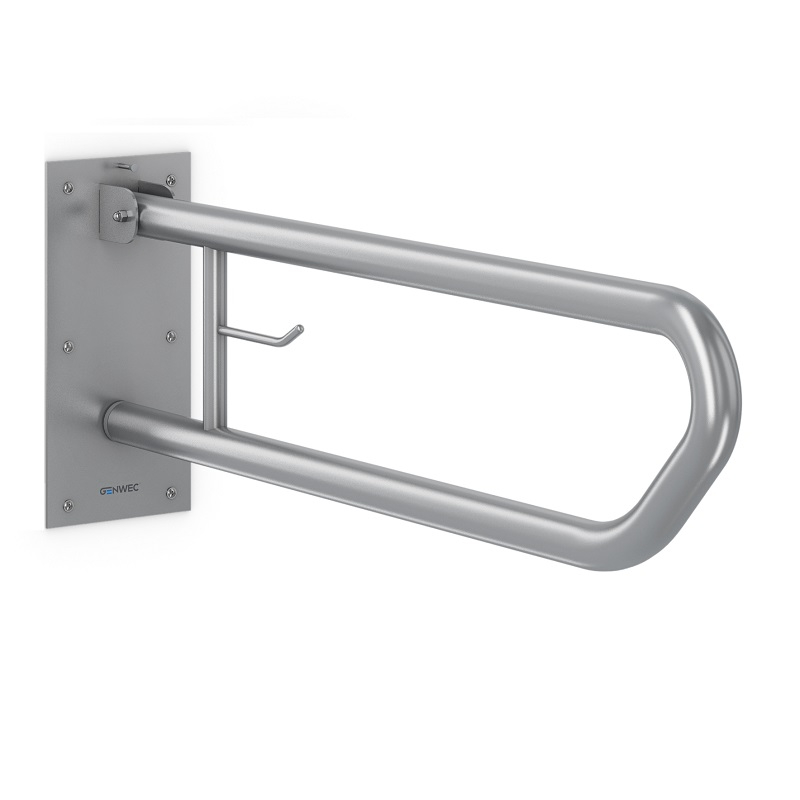

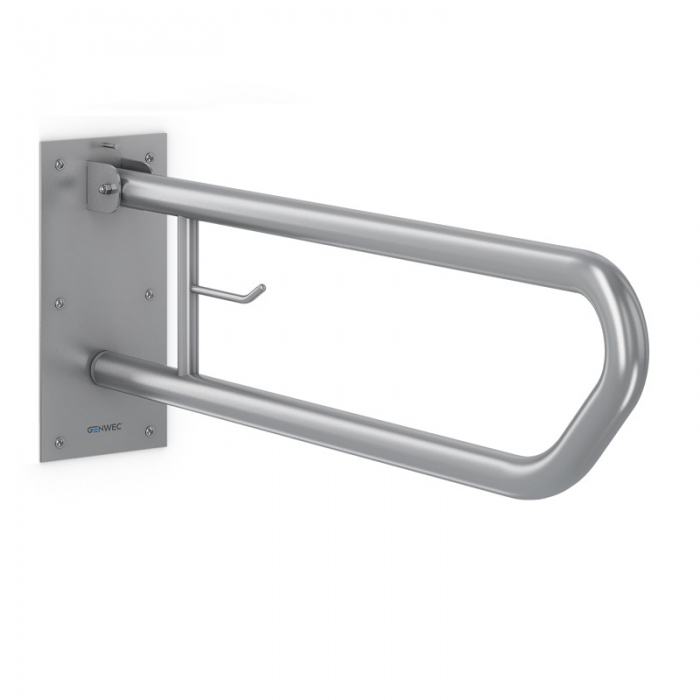

Vertical folding bar with gradual breaking system incorporated. Hinged grab rail 600mm.

This horizontal installation bar is composed of an AISI 304 stainless steel tubing with 32 mm of diameter and 1.5 mm of thickness.

The tube has been bent as a “U” and it is reinforced by a joist with a paper hanger located in the middle.

The wall support is composed of an AISI 304 stainless steel plate with 3mm of thickness, and two AISI 304 stainless steel hinges with 3 mm of thickness using to turn the folding bar.

All the pieces have been welded by TIG method.

The folding bar complies the ADA regulation.

The bar is fixed to the wall with 6 nylon plugs of 10X60 and AISI304 stainless steel screws of 8X70 with hexagonal head.

Grab bar will support loads in excess of 120Kg if properly installed.

Please note you are entitled to VAT relief if you are disabled or if one has a long-term illness. This is available on products designed or adapted for your own personal or domestic use.

Please find attached the eligibility declaration form which is available for download and completion.

Once completed, please inform our sales team that you are entitled to VAT relief, they will then request a copy of the completed form, ensuring your order benefits from the entitlement of VAT reduction.

• The total measures of the product are 300x100x600 mm
• Gradual breaking system
• 1.5 mm AISI 304 stainless steel tubing with 32 mm outside diameter
• Available in White, Brushed and Polished
• Support loads in excess of 120Kg if properly installed
• Recommended Installation Height: 70-75cm
