Bobrick Stainless Steel Recessed Automatic Hand Dryer

£888.00 £740.00
SKU
B3725
In stock
Warranty :
5 Years
Delivery :
1-2 Working Days
  • Vandal-Resistant
  • LED light indicators
  • Type 304 Stainless Steel
  • Equipped with Automatic Thermal-Overload Switch

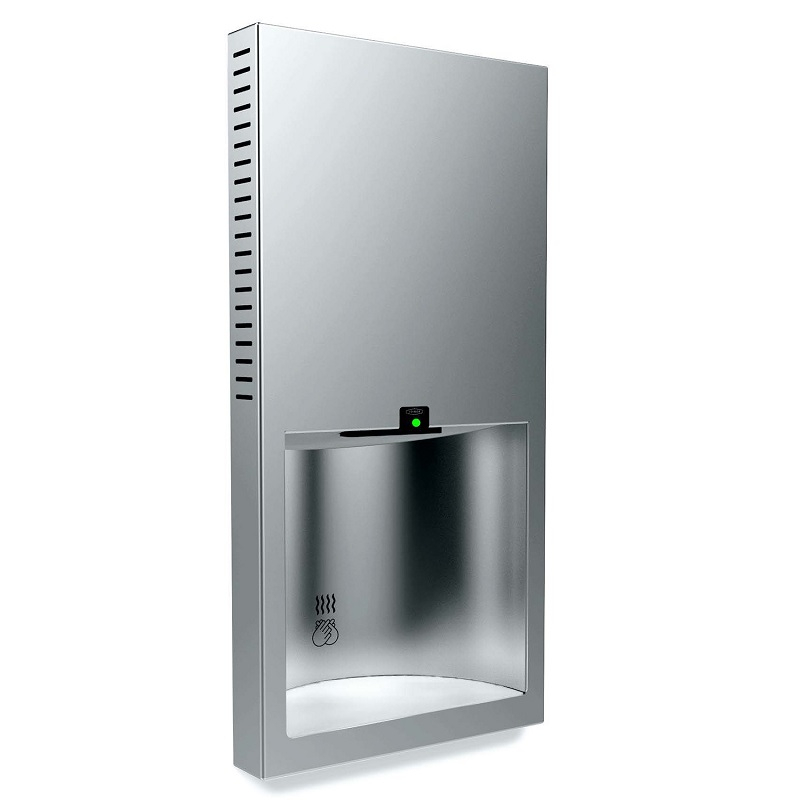

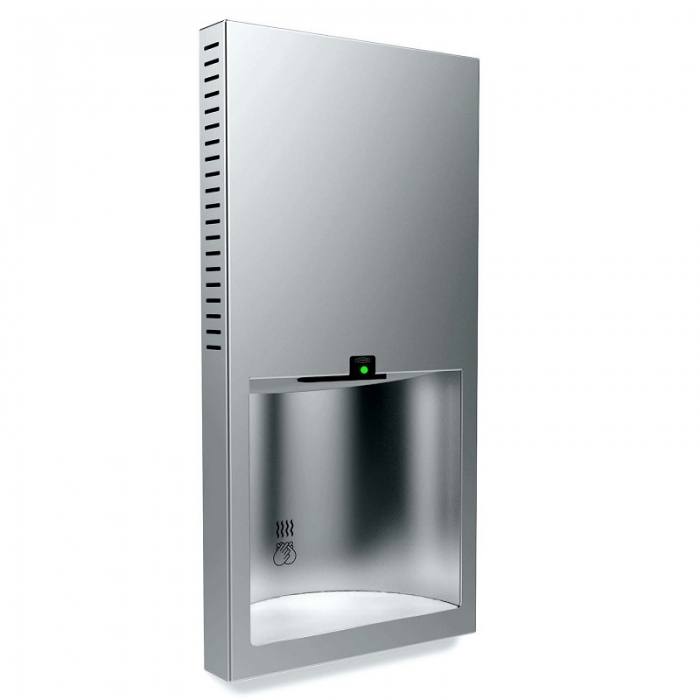

Bobrick Stainless Steel Recessed Automatic Hand Dryer



The Recessed Automatic Hand Dryer with a 150 mm deep, drying alcove to capture dripping water. Constructed from type-304 stainless steel with all-welded construction with the exposed surfaces shall have a satin finish. Cover shall have a 18-gauge (1.2mm) and project 50mm from the wall.

All welded corners are fully secured to cabinet with vandal-resistant screws. The directed air nozzle prevents the dryer from splashing water on the floor and or on the user. Hand drying alcove is equipped with a ceramic water absorbent surface to capture and evaporate water. Fan housings shall be fire-retardant moulded black plastic. The motor is 1/7 hp, universal type equipped with automatic thermal-overload switch. Heating elements are located on the outlet side of the fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch. When the hands are removed, the dryer will automatically turn itself off. LED light will flash green when the dryer is ready to be used. The solid green light indicates when the dryer is being used and the solid red light is not ready.

Unit shall be CE marked and cUListed. Unit shall be protected by a limited 5-year warranty from date of purchase on all parts except motor brushes.



  • Vandal-Resistant
  • LED light indicators
  • Type 304 Stainless Steel
  • Nozzle prevents the dryer from splashing water
  • Equipped with Automatic Thermal-Overload Switch





Product Code B3725
Dimensions (mm) H610 x W300 x D50
Wall Opening (mm) H585 x W277 x D100
Finish Satin Stainless Steel
Noise Level 70dB(A)
Voltage 240
Recessed Yes
Motor Speed (rpm) 8000
Wattage 1000
Drying Time 17 Seconds
GTIN/EAN 716954014221

What is the minimum recess to install in false wall?

The minimum recess is 100mm, see downloads Tab

What is the correct height to install for children 3-4 years old?

The ideal height for infants 4 years old is 915mm (36") Children 5-8 years the height increases to 1015mm (40"), children from 9 -12 1120mm (44") and the universal fixing height is 1219mm (48") from the bottom fixing point of the dryer to ground floor. (Installation instructions are supplied)

What is the projection once installed?

The maximum projection is 50mm

How is water that is blown off from the hands drained away?

The air nozzle prevents the dryer from splashing water on the floor and or the user. The hand drying alcove area is equipped with a ceramic water absorbent surface to capture and then evaporate water droplets from hand drying
